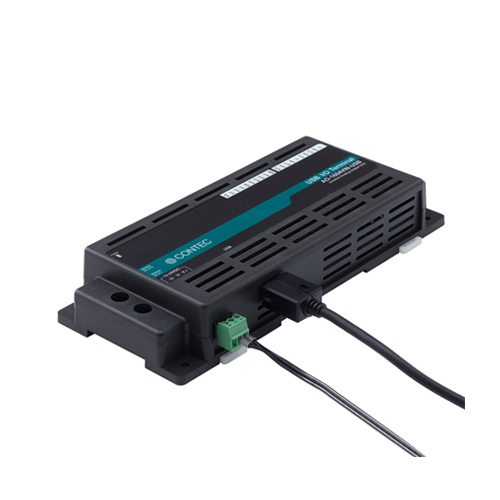

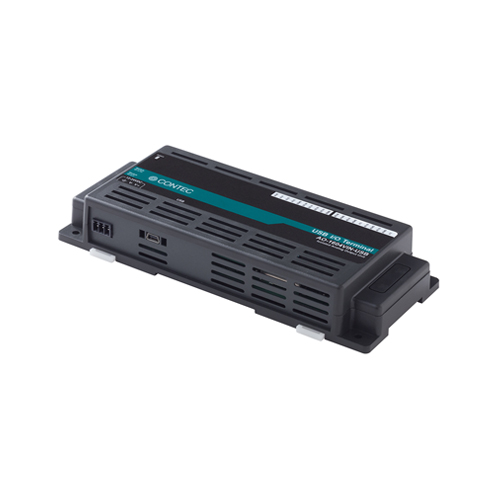

AO-1604VIN-USB Analog Output USB I/O Unit / 4ch (16bit 100ks/s) / Bus Isolation - N Series

4 channels of analog output (voltage output) with high accuracy, and 4 channels of digital input and output respectively are contained
Buffer memory available in FIFO format
Sampling can be driven by a clock or by various triggers
Software-based calibration function
Isolated from the bus by a digital isolator
Compact design not restricting installation location (188.0(W) x 78.0(D) x 30.5(H))
