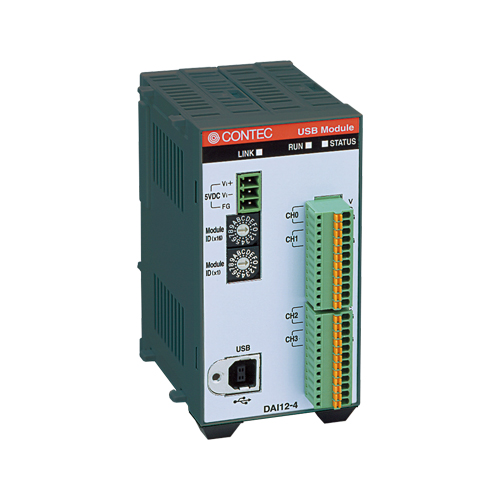

DAI12-4(USB)GY Analog Output USB I/O Unit / 4ch(12bit 100ks/s) / Bus Isolation

Equipped with the buffer memory (256K data) which can be used in either FIFO or ring format
Isolated from the bus by a digital isolator
Conversion speed 10µsec (voltage) or 20µsec (current), 12-bit resolution, analog output 4ch
Screw-less connector plug facilitating wiring and plugging/unplugging
Capable of being mounted on 35-mm DIN rails
Easy to increase the output channels using an expansion module
