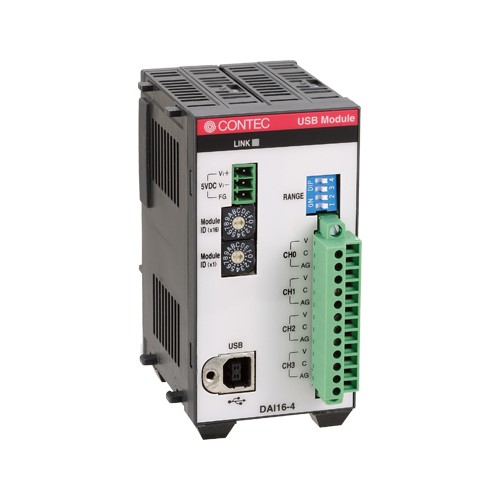

DAI16-4(USB) Analog Output USB I/O Unit / 4ch(16bit 100ks/s) / Bus Isolation

  • Discontinued
  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • End of Repair Service: 2025/05/06
  • Isolated from the bus by a digital isolator
  • Windows compatible driver libraries are attached.
  • Output signal can be controlled by a clock or various trigger conditions
  • Easy to increase the output channels using an expansion module
  • *
    For details about an extended warranty, please contact us


Add-on Module

Bus Specification USB
Size F&eIT 2U
Used Connector -

Analog I/O

Input Channels -
Input Range -
ADC Resolution -
Sampling Rate -
Input Buffer Memory -
Output Channels 4-ch
Output Range ±10V; 0 to 20mA
DAC Resolution 16-bit
Update rate 10μsec (max.) (voltage); 20μsec (max.) (current)
Output Buffer Memory

Digital I/O

Input Channels -
Output Channels -
Bi-directional I/O Channels -
Response Time (Input) -
Response Time (Output) -
Operating Voltage (Input) -
Operating Voltage (Output) -
Input Circuit -
Output Circuit -
Built-in Power Supply -

Supported OS

Supported OS
