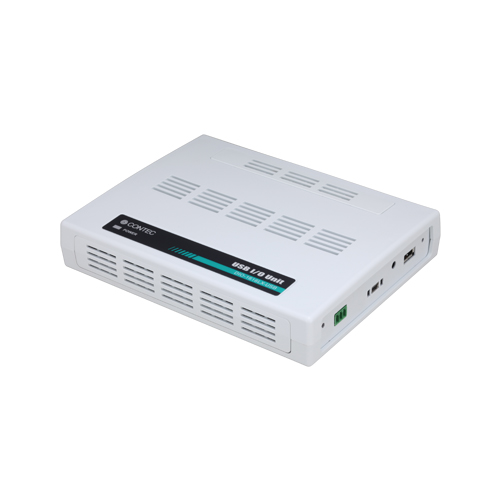

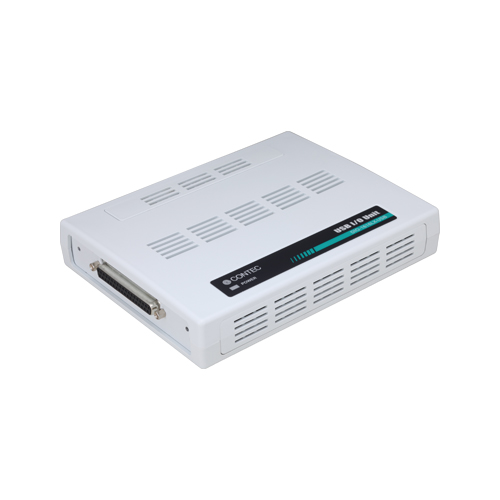

DIO-1616LX-USB Digital I/O USB I/O unit 16ch/16ch (isolated 12 - 24VDC) - the X series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • 16 channels of Optocoupler isolated inputs (compatible with current sink output) and 16 channels of Optocoupler isolated open-collector outputs (current sink type)
  • USB HUB function
  • You can use 16 input signals as interrupt request signals.
  • Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • Windows compatible driver libraries are attached.
  • *
    For details about an extended warranty, please contact us

Ordering Information

Ordering Information

Model Description / Certification
DIO-1616LX-USB Digital I/O USB I/O unit 16ch/16ch (isolated 12 - 24VDC) - the X series
  • CE marking
  • FCC compliant

Options

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O

Power Supply / AC Adapter

Item Item Name
POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)

Other Accessories

Item Item Name
BRK-USB-X USB I/O Unit Bracket for X series

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(WDM) for USB Digital I/O Driver API-DIO(WDM) for USB

Library Software

Item Item Name
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

Item Item Name
ESP-F5 Extended warranty service package (5 years service course)
ESP-S1 Extended warranty service package (Extension one year)
