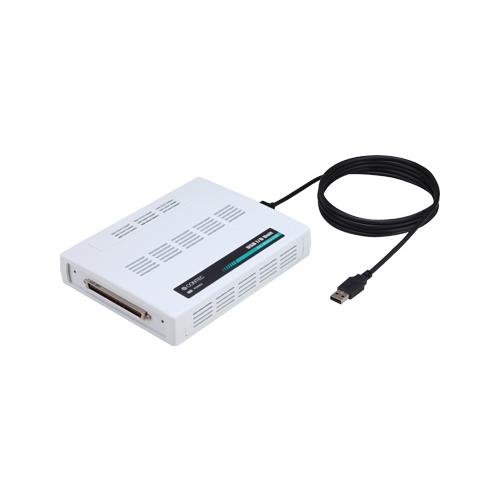

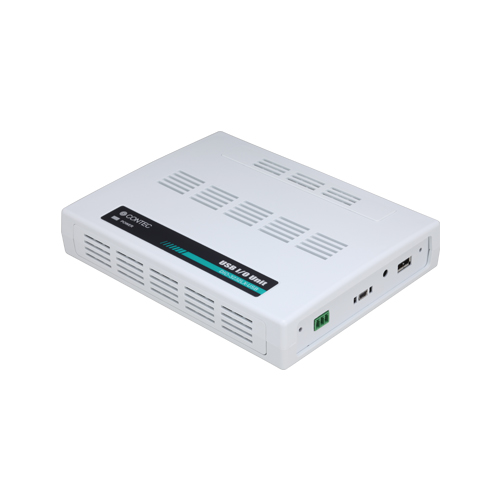

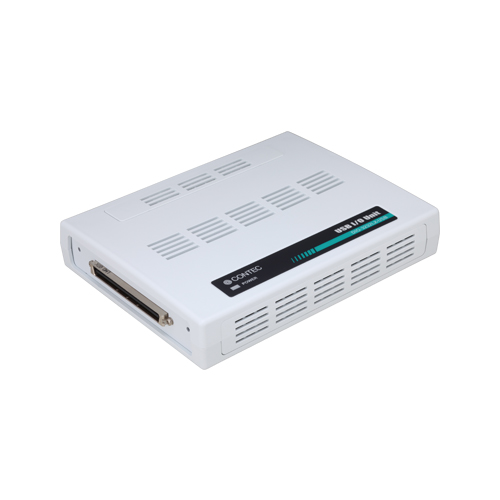

DIO-3232LX-USB Digital I/O USB I/O unit 32ch/32ch (isolated 12 - 24VDC) - the X series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • 32 channels of Optocoupler isolated inputs (compatible with current sink output) and 32 channels of Optocoupler isolated open-collector outputs (current sink type)
  • USB HUB function
  • You can use 32 input signals as interrupt request signals
  • Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • Windows compatible driver libraries are provided.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
DIO-3232LX-USB Digital I/O USB I/O unit 32ch/32ch (isolated 12 - 24VDC) - the X series
  • CE marking
  • FCC compliant
  • VCCI

Options

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O
CM-64L Signal monitor Accessory for Digital I/O

Cable

Item Item Name
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Power Supply / AC Adapter

Item Item Name
POA200-20 F&eIT series AC adaptor (90 - 264VAC 0.3A / 5VDC 2A)

Other Accessories

Item Item Name
BRK-USB-X USB I/O Unit Bracket for X series
CCB-96 Connector conversion card

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver

Library Software

Item Item Name
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

Item Item Name
ESP-F5 Extended warranty service package (5 years service course) (Japan only)
ESP-S1 Extended warranty service package (Extension one year) (Japan only)
