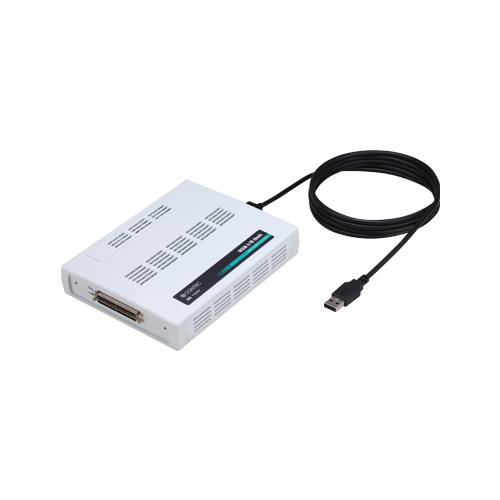

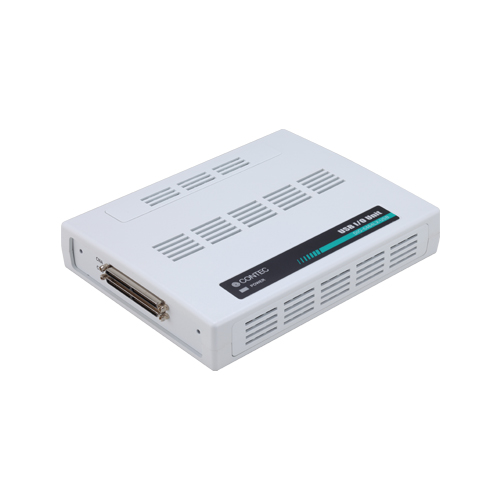

DIO-6464LX-USB Digital I/O USB I/O unit 64ch/64ch (isolated 12 - 24VDC) - the X series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • Optocoupler bus isolation
  • You can use 16 input signals as interrupt request signals.
  • Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
DIO-6464LX-USB Digital I/O USB I/O unit 64ch/64ch (isolated 12 - 24VDC) - the X series
  • CE marking
  • FCC compliant
  • VCCI

Options

Expansion Accessory Module

Item Item Name
CM-64L Signal monitor Accessory for Digital I/O

Cable

Item Item Name
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-100A Screw Terminal (M3 x 100)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Power Supply / AC Adapter

Item Item Name
POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)

Other Accessories

Item Item Name
BRK-USB-X USB I/O Unit Bracket for X series
CCB-96 Connector conversion card

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver

Library Software

Item Item Name
DAQfast LabVIEW Data Acquisition Library
