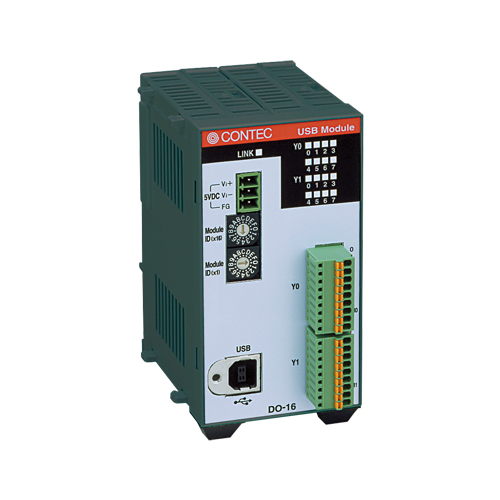

DO-16(USB)GY Digital output USB I/O unit 16ch (isolated 12 - 24VDC)

  • Discontinued
  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • End of Repair Service: 2024/09/28

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Opto-coupler bus isolation
  • Trigger monitor function integrated
  • Easy to increase the number of output channels using an expansion module
  • Screw-less connector plug facilitating wiring and plugging/unplugging
  • Capable of being mounted on 35-mm DIN rails
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model Definition
N Series for USB. Isolated Digital I/O Unit (16ch DI, 16ch DO)
DIO-1616LN-USB
For difference between DO-16(USB)GY and DIO-1616LN-USB, please refer to manuals.

Ordering Information

Model Description / Certification
DO-16(USB)GY [End of Repair Service : 28 September, 2024] Digital output USB I/O unit 16ch (isolated 12 - 24VDC)
  • CE marking
  • VCCI

Options

Digital I/O

Item Item Name
DO-16(FIT)GY Digital output F&eIT I/O module 16ch (isolated 12 - 48VDC)

Power Supply / AC Adapter

Item Item Name
POA200-20 F&eIT series AC adaptor (90 - 264VAC 0.3A / 5VDC 2A)
POW-AD13GY F&eIT series AC-DC Power Supply Unit Input 85-132VAC, Output 5VDC 3A
POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development

Library Software

Item Item Name
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

Item Item Name
ESP-F5 Extended warranty service package (5 years service course) (Japan only)
ESP-S1 Extended warranty service package (Extension one year) (Japan only)
