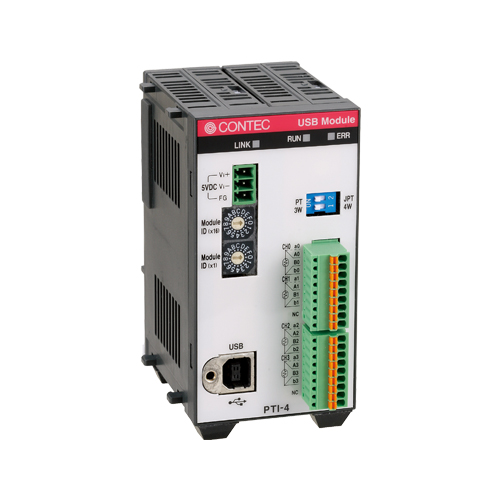

PTI-4(USB) Pt100 Temperature Sensor Input USB I/O Unit / 4ch(0.01°C 200s/s) / Bus Isolation

  • Discontinued
  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • End of Repair Service: 2024/08/31

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Supporting a variety of temperature measurement applications:
  • Digital Filter
  • Discontinuity detection
  • Isolated from external device
  • Easy to wire
  • Easy-to-install Design
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model Definition
F&eIT Remote I/O - Communication Coupler / 1x LAN
CPU-CA20(FIT)GY
CONPROSYS M2M Controller - Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MCS341-DS1-111
CONPROSYS M2M Controller - Configurable Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
CPS-MCS341-DS1-131

There is no successor. We propose the following compatible products.

  1. F&eIT series I/O controlling module CPU-CA20(FIT)GY *1
  2. M2M controller CPU module CPS-MCS341 series *2

See datasheet or manuals of each product for more details.

  • ※1
    An optional "F&eIT series input module for Pt100 temperature sensor PTI-4(FIT)GY" is required.
  • ※2
    An optional "Sensor input module CPS-SSI-4P" is required.

Ordering Information

Model Description / Certification
PTI-4(USB) [End of Repair Service : 31 August, 2024] Pt100 Temperature Sensor Input USB I/O Unit / 4ch(0.01°C 200s/s) / Bus Isolation
  • CE marking
  • FCC compliant
  • VCCI
* Only body is compliant with CE.

Options

Analog I/O

Item Item Name
PTI-4(FIT)GY Pt100 Temperature Sensor Input F&eIT I/O Module / 4ch(0.01°C 200s/s) / Bus Isolation

Digital I/O

Item Item Name
DO-32(USB) Digital output USB I/O unit 32ch (isolated 12 - 48VDC)

Power Supply / AC Adapter

Item Item Name
POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-PTI(WDM) for USB Temperature Sensor Input Driver API-PTI(WDM) for USB

Extended Warranty Service

Item Item Name
ESP-F5 Extended warranty service package (5 years service course) (Japan only)
ESP-S1 Extended warranty service package (Extension one year) (Japan only)
