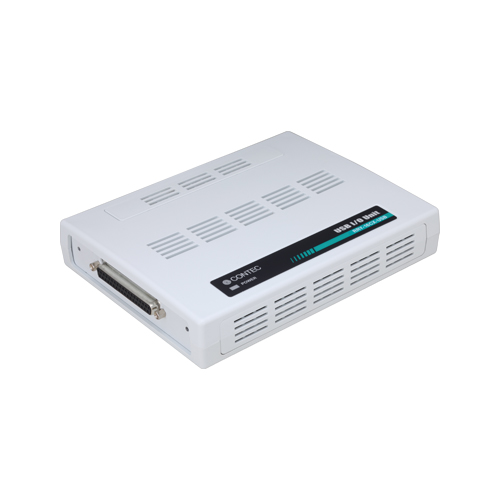

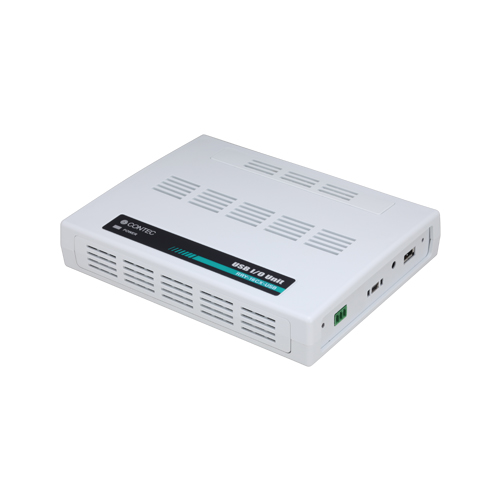

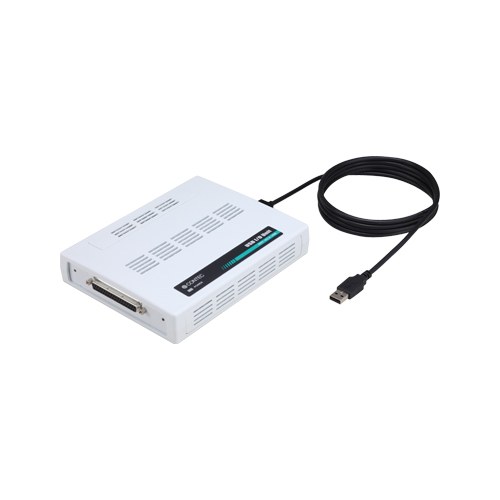

RRY-16CX-USB Reed relay contact output USB I/O unit 16ch (isolated - 125VAC - 30VDC) - the X series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • 16 independent common reed relay contact outputs (with a single make contact)
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • USB HUB function
  • Windows compatible driver libraries are attached.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
RRY-16CX-USB Reed relay contact output USB I/O unit 16ch (isolated - 125VAC - 30VDC) - the X series
  • CE marking
  • FCC compliant
  • VCCI

Options

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

Item Item Name
DTP-3A Screw Terminal (M3 x 37)
DTP-3C General Purpose Terminal
DTP-4A Screw Terminal (M2.6 x 37)
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Power Supply / AC Adapter

Item Item Name
POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A

Other Accessories

Item Item Name
BRK-USB-X USB I/O Unit Bracket for X series

Software Development Kit

Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver

Library Software

Item Item Name
DAQfast LabVIEW Data Acquisition Library
