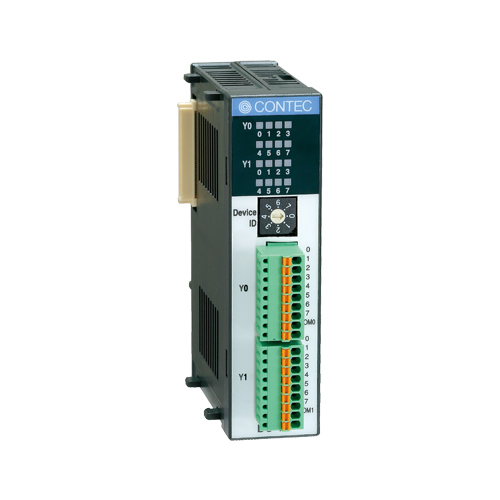

DO-16(FIT)GY Digital output F&eIT I/O module 16ch (isolated 12 - 48VDC)

Standard Warranty1 yr
Extended WarrantyAvailable

*
For details about an extended warranty, please contact us.

Specifications

Add-on Module

Series	F&eIT(Remote I/O System)
Bus Specification	F&eIT stack bus
Size	F&eIT 1U
Used Connector	-

Digital I/O

Input Channels	-
Output Channels	16-ch
Bi-directional I/O Channels	-
Response Time (Input)	-
Response Time (Output)	1msec (max.)
Operating Voltage (Input)	-
Operating Voltage (Output)	12 to 48VDC
Input Circuit	-
Output Circuit	Opto-isolated open-collector output (current sink type)
Built-in Power Supply	-

Supported OS

Supported OS	-

*
The supported OS depends on connected controllers (CPU-CA20, BX-320 etc.).
