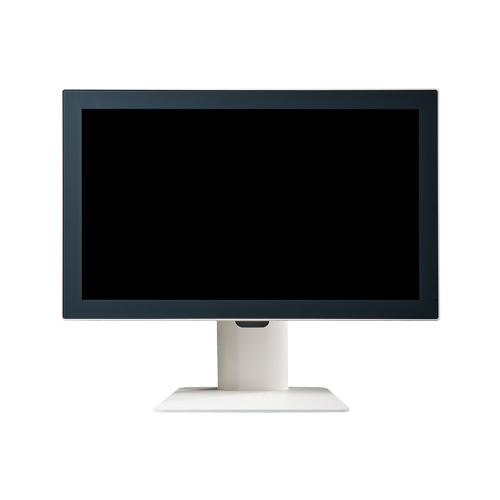

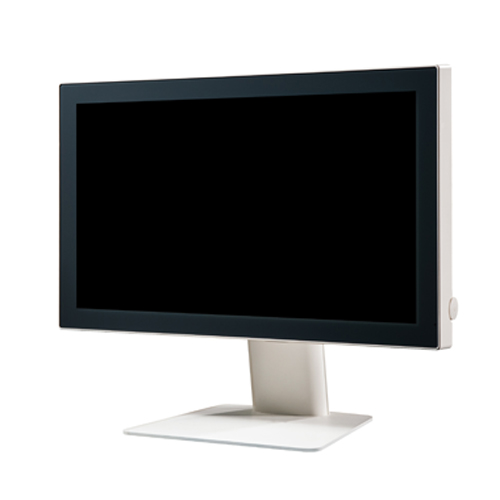

CM-ME185P 18.5” PCAP Touch Medical Monitor

  • Standard Warranty3 yrs.
  • True-Flat Front IPx5 monitor for easy cleaning and sanitization
  • DICOM Part 14 compliant with 10 bits LUT
  • 18.5" medical display with 166 x 768 (16:9) resolution
  • World class medical safety regulations and certifications
  • Life cycle management and revision control

Specifications

Mechanical Design

Mounting VESA Arm; Desktop

Touch Screen

LCD size 18.5-inch
LCD resolution 1366 x 768 (FWXGA)
Touch panel resolution -
Detection method Projected capacitive touch (PCAP)

Interface (TP)

Video input DisplayPort; DVI; Analog RGB
Touch panel input USB; RS-232C

Power

Input voltage 12VDC; 100 to 240VAC

Environment

Operating temperature 10 to 40°C (50 to 104°F)
Storage temperature -20 to 60°C (-4 to 140°F)
