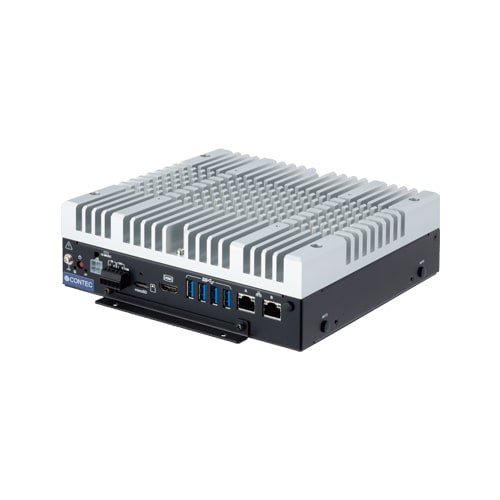

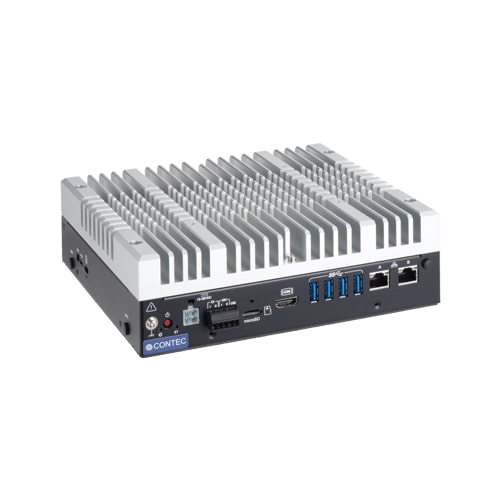

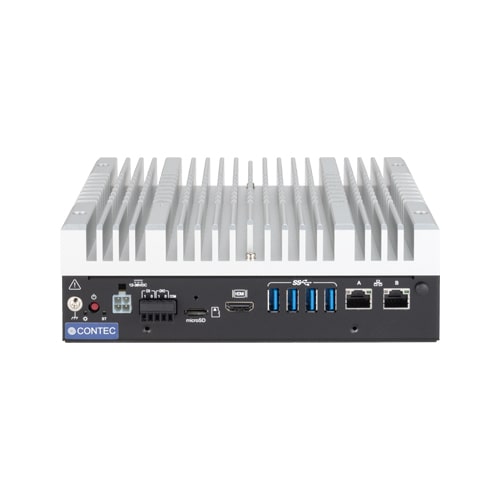

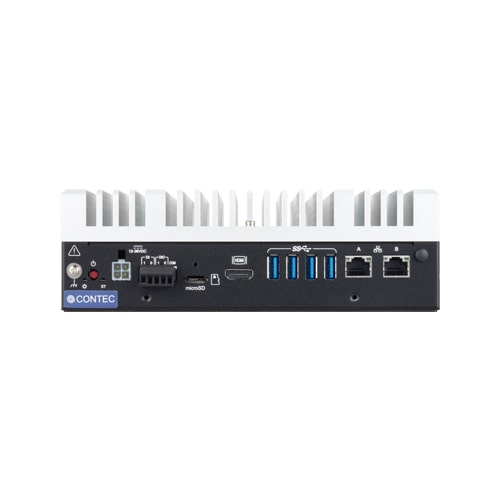

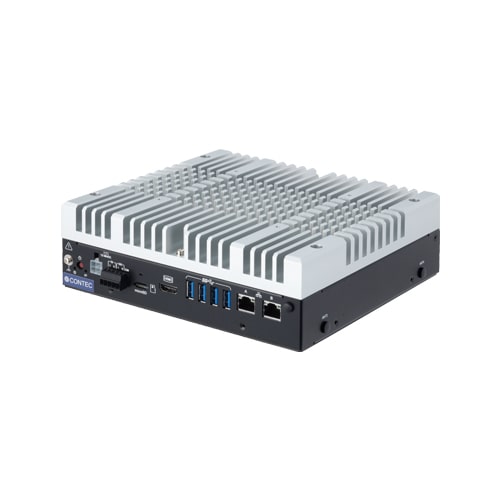

DX-M2300 Industrial Edge AI Computer DX-M2300 - Fanless Embedded PC / with NVIDIA® Jetson AGX Orin™

Standard Warranty3 yrs
Extended WarrantyAvailable

Edge AI accelerator equipped with NVIDIA Jetson AGX Orin
Standard-equipped with NVMe storage
"Power failure protection system" features power-off without OS shutdown
Highly reliable and long-life components
Two Gigabit LAN ports for alternating connections between different network layers
Supports ambient temperatures from -20°C to +60°C(-4 to +140°F)

*
For details extended warranty, please contact us.

Power Failure Protection

Special Page - Pioneering the DX Era: Contec AI Computers

Similar Model

Specifications

Mechanical Design

Mounting	Desktop; Wall Mount

Software Support

Supported OS	Linux Ubuntu; SDK JetPack

Core System

CPU Generation (Development code)	-
Processor	ARM Cortex-A78AE v8.2 2GHz (12core); ARM Cortex-A78AE v8.2 2GHz (8core)
CPU socket	-
Memory	up to 64GB
RAS	-
GPU	2048 CUDA Core, 64 Tensor Core; 1792 CUDA Core, 56 Tensor Core
AI Performance	275 TOPS (INT8); 200 TOPS (INT8)
Security	-

Interface

Video	1x HDMI
LAN	2x 1000BASE-T/100BASE-TX/10BASE-T
Wireless	-
Audio	1x Line out; 1x Mic-in

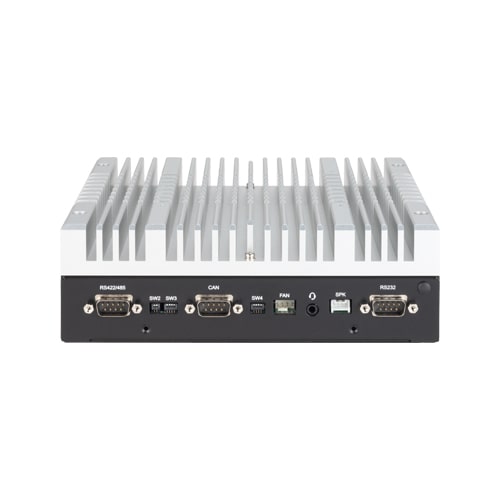

I/O	4x USB3.2 Gen2 (USB3.1); 1x RS-232C; 1x RS-422A/485; 2x CAN
Memory card	1x Micro SD slot

Expansion Slot

Expansion bus	-
Drive bay	-

Power

Input voltage	12 to 36VDC

Environment

Operating temperature	-20 to 60°C (-4 to 140°F) w/ airflow 0.7m/s
Storage temperature	-20 to 60°C (-4 to 140°F)
Standards & Certifications	CE; FCC Class A; UKCA; VCCI Class A
