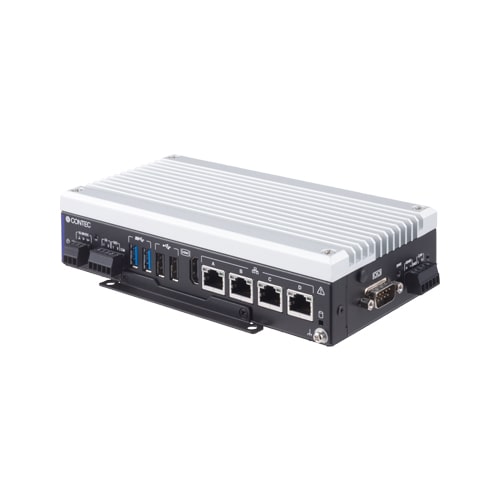

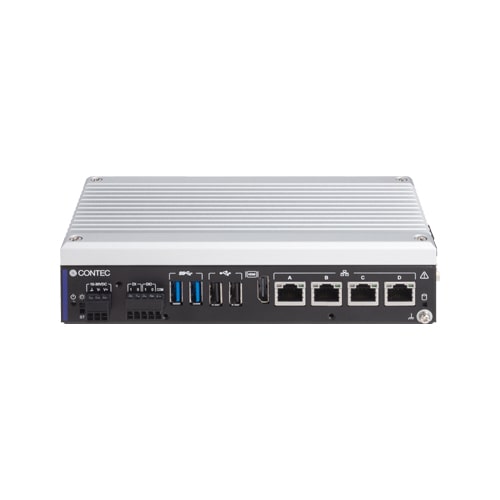

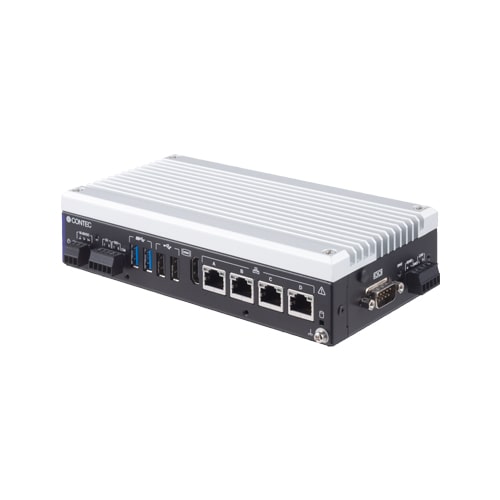

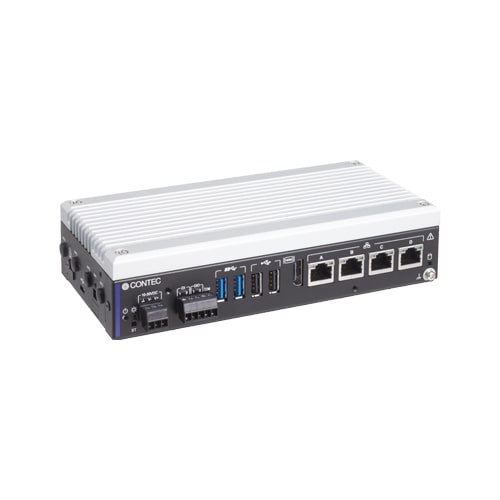

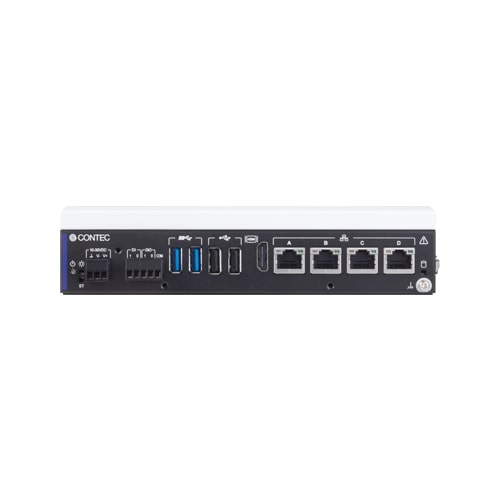

DX-U2200 Industrial Edge AI Computer DX-U2000 - Fanless Embedded PC / with NVIDIA® Jetson Orin NX™ / ARM Cortex-A78AE / DC Power Supply

Standard Warranty3 yrs
Extended WarrantyAvailable

Edge AI accelerator powered by NVIDIA Jetson Orin NX
Built-in NVMe storage
4G LTE Cat.4 communication model can be selected
Four Gigabit LAN ports for alternating connections between different network layers
Flexible installation
-20 to 60°C ambient temperature

*
For details extended warranty, please contact us.

Special Page - Pioneering the DX Era: Contec AI Computers

BUY NOW - U.S. Customers can purchase online in the Contec Americas eShop

Similar Model

Jetson Orin Nano model

Specifications

Mechanical Design

Mounting	DIN Rail Mount; VESA 100 x 100; Wall Mount

Software Support

Supported OS	Linux Ubuntu; SDK JetPack

Core System

Processor	ARM Cortex-A78AE v8.2 2GHz (8core); ARM Cortex-A78AE v8.2 2GHz (6core)
CPU Generation (Development code)	-
CPU socket	-
Memory	up to 16GB
RAS	-
GPU	1024 CUDA Core, 32 Tensor Core
AI Performance	100 TOPS (INT8); 70 TOPS (INT8); -
Security	-

Interface

Video	1x HDMI
LAN	4x 1000BASE-T/100BASE-TX/10BASE-T
Wireless	4G LTE CAT4
Audio	-
I/O	2x USB3.2 Gen2 (USB3.1); 2x USB2.0; 1x RS-232C; 1x RS-485; 1x CAN
Memory card	-

Expansion Slot

Expansion bus	-
Drive bay	-

Power

Input voltage	10 to 30VDC

Environment

Operating temperature	-20 to 60°C (-4 to 140°F) airflow 0.7m/s
Storage temperature	-20 to 60°C (-4 to 140°F)
Standards & Certifications	CE; FCC Class A; TELEC; UKCA; VCCI Class A
