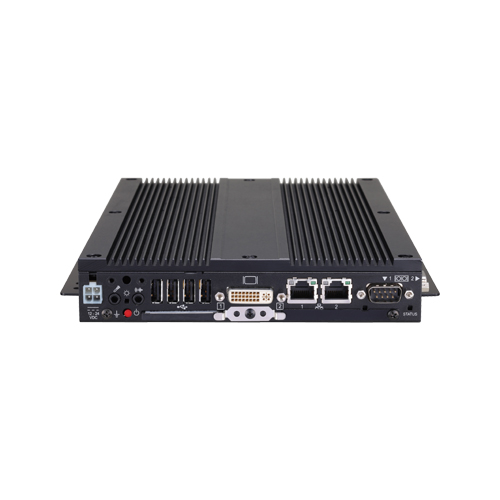

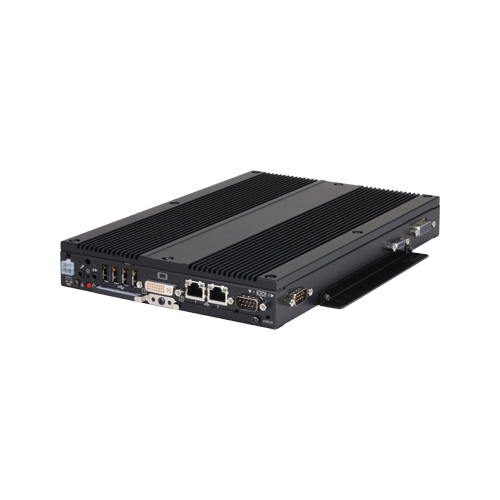

BX-100n BX-100n - Fanless Embedded PC / Slim A5 Size / Atom N270 + 945GSE / DC Power Supply

  • Discontinued
  • Standard Warranty1 yr
  • End of Repair Service: 2020/09/11

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Immediate measurement control enabled by internal analog I/O, digital I/O, and counter input features
  • Serving the downsizing of equipment, a small footprint design for A4-sized or smaller installation area
  • Slitless/fanless design that reduces maintenance work
  • Falling-off prevention tools and fixing clamps provided to avoid trouble caused by disconnected cable
  • Remote power management function to reduce operation tasks
  • Major types of peripherals are supported with rich interfaces including the two CF card slots

Ordering Information

Replacement Product

Model Definition
BX-110n - Fanless Embedded PC / Slim A4 Size / Atom D510 + NM10 / DC Power Supply
BX-110n
Architecture changed, memory size increased, DVI-I connector adopted (RGB connector is not supported). Please refer to the manual for details.

Ordering Information

Model Description / Certification
BX-100n-DC5000-C01 BOX-PC BX100n series for Embedded with Atom, DVI, without Fan/OS(HDD)
  • CE marking
BX-100n-DC5000-C02 BOX-PC BX100n series for Embedded with Atom, DVI and Multi-signal I/O, without Fan/OS(CF)
  • CE marking
  • FCC compliant
  • VCCI
BX-100n-DC5121-C01 BOX-PC BX100n series for Embedded with Atom, DVI and Windows XP Pro(Wide temperature range HDD40GB), without Fan
  • CE marking
BX-100n-DC5311-C02 BOX-PC BX100n series with fanless Atom N270, DVI, I/O WES2009(ja/CF 2GB)
  • CE marking

Options

Expansion box

Item Item Name
ECH-PCI-CE-H2C PCI Bus Expansion Chassis (Short size, 2-Slots, BLACK)

Display

Item Item Name
FPD-21 Panel-Mount FLAT PANEL DISPLAY with Analog RGB input
FPD-75 Embedded FLAT PANEL DISPLAY with LVDS&DVI-D input
FPD-L71ST-DC1 Panel-Mount FLAT PANEL DISPLAY with LVDS&DVI-D input

Cable

Item Item Name
IPC-DVI/D DVI-PanelLink Conversion Display Cable

Power Supply / AC Adapter

Item Item Name
IPC-ACAP12-04 AC Adapter(Input:100-240VAC, Output:12VDC 4A)

Storage

Item Item Name
CF-A CompactFlash (Fixed Disk FIX DISK Spec.)
CF-B CompactFlash(FIX DISK Spec.)
PC-HDD40G 2.5 inch 40GB Hard Disk Drive

Other Accessories

Item Item Name
BX-BKT-VESA02 Metal fittings for VESA(75 x 75, 100 x 100mm)

Extended Warranty Service

Item Item Name
ESP-F5 Extended warranty service package (5 years service course) (Japan only)
ESP-S1 Extended warranty service package (Extension one year) (Japan only)
