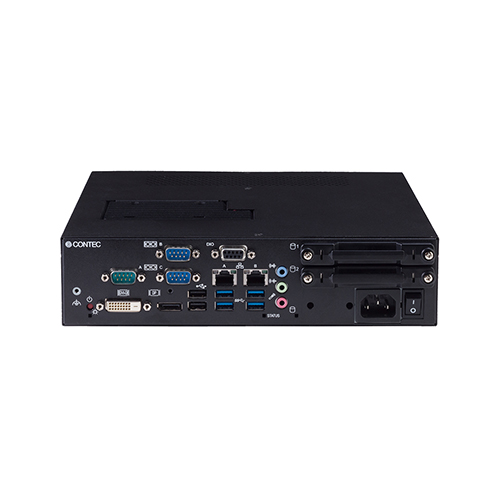

BX-M1010 BX-M1000 - Fanless Embedded PC / High Expandability / Core i5-7300U (Kaby Lake) / w/o Expansion Slot / AC Power Supply

  • Limited Stock
  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • End of Repair Service: 2032/06/30

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Seventh-generation Core i5 processor adopted
  • Fan-less design reduces maintenance work
  • Major types of peripherals are supported with rich interfaces
  • The attachment fitting and cable ties prevent problems caused by cable disconnections
  • Safety design required for embedded applications
  • *
    For details about an extended warranty, please contact us.

Similar Models

Ordering Information

Replacement Product

Model Definition
Box computer BX-M4600 -Fanless Embedded PC / Intel 13th Gen. i7-13700TE (Raptor Lake-S + R680E) / DC Power Supply
BX-M4600-G
For details, please see datasheets and manuals.

Ordering Information

Model Description Certification Buy
BX-M1010-NA02 [Limited Stock] [End of Repair Service : June 30, 2032] Base model with Intel Core i5 Processor 7300U 2.60GHz (Memory 8GB, without OS, without storage devices)
  • CE marking
  • FCC compliant
  • VCCI
Where to buy
BX-M1010 BTO Model [Limited Stock] [End of Repair Service : June 30, 2032] BTO model with Intel Core i5 Processor 7300U 2.60GHz (Memory 8GB, without expansion slot)
  • CE marking
  • FCC compliant
  • VCCI
Where to buy

BTO model

This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.

Storage 1
  • 1 x 100GB HDD (Last Order: 24 Mar, 2025)
  • 1 x 256GB SSD (MLC)
OS
  • Windows 10 IoT Enterprise 2019 LTSC 64-bit (Japanese/English/Chinese/Korean)
Storage 2 *1
  • none
  • 1 x 100GB HDD (Last Order: 24 Mar, 2025)
  • 1 x 256GB SSD (MLC)
RAID Function
  • none
  • Software RAID Function *1

*1 If you selected a RAID function, you must select the same device for Storage 2 as one for Storage 1.
* There are combinations that cannot be configured. Please inquire in detail.



Options

Storage

Item Item Name
PC-HDD100GS-2 2.5-inch 100GB SATA Hard Disk Drive
SSD-256GS-2M 2.5-inch 256GB SATA Solid State Drive
