BX-M2500 BX-M2500 -Fanless Embedded PC / Intel 9th Gen. Xeon (Coffee Lake R + C246) / DC Power Supply

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

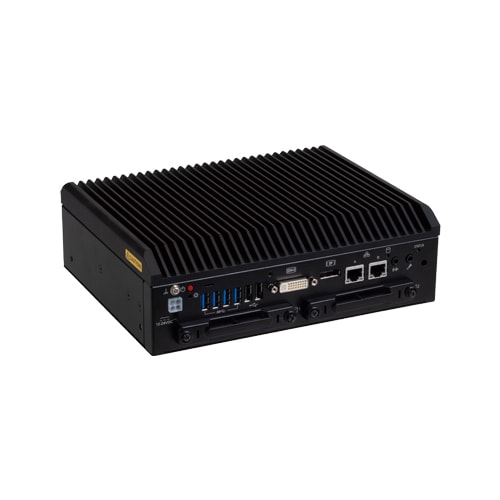

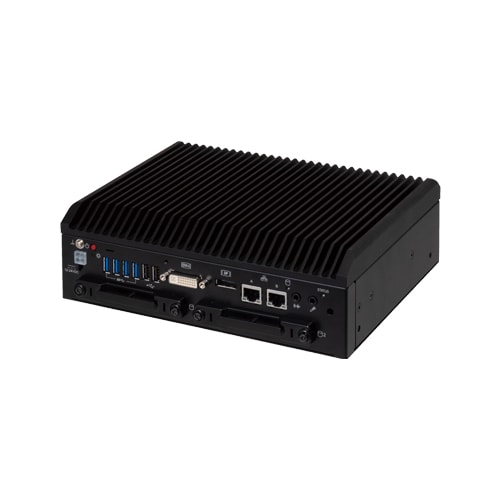

This product is a fan-less and high-performance embedded type computer with the nine-generation Intel® CPU processor. Along with its power-saving and high-performance features, this product has a rich variety of interfaces and achieves fan-less operation by way of natural air-cooling. The Xeon E-2278GEL, Core i5-9500TE, Core i3-9100TE or Celeron G4900T processor can be selected for the CPU. Various interfaces such as dual LAN / USB3.2 Gen2 / DisplayPort / DVI-I / RS-232C / DIO and the slot-in 2.5 inches SATA hard disk bay unit being installed, this product is best suited to displaying images including digital signage. Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, Contec-customized BIOS allows support to be provided at the BIOS level. A model (BX-M2500-J805L07L08W19B) pre-installed with Trellix (formerly McAfee) Application Control, Trellix's endpoint security product, is also available.

• Ninth-generation Xeon, Core i5, Core i3, Celeron processor adopted

  • This product adopts the CPU that saves power consumption and also provides high computing and graphic performances.
• Major types of peripherals are supported with rich interfaces

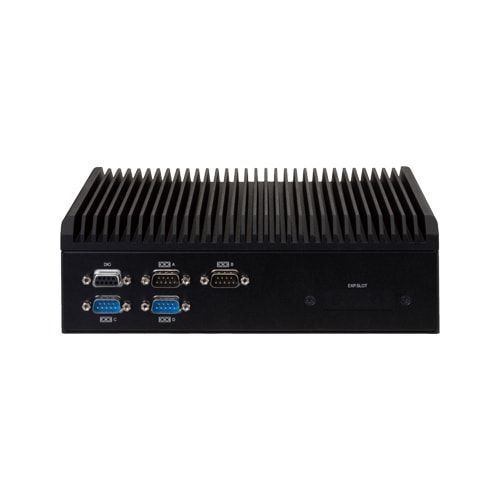

  • It has a variety of extended interface such as DVI-I x 1, DisplayPort×1, 1000BASE-T x 2, USB3.2 Gen2 x 4, USB2.0 x 2, serial (RS-232C) x 4 and DIO x 1.
• Support large capacity of storage and mirroring (RAID1)

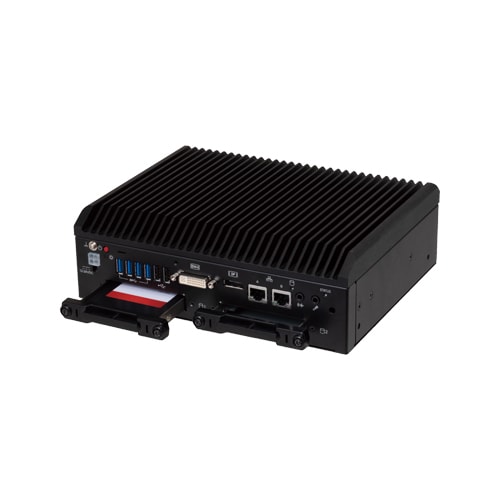

  • It has two slot-in type of 2.5-inch SATA disk slots, providing the ability to separate data from the operating system, as well as the convenience of being able to use one slot for system startup and the other for maintenance or for taking home system logs or collected data. and support software RAID 1 as well.
• "Power failure protection system" features power-off without OS shutdown

  • Equipped with the "Power failure protection system" function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows 10 IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.
• High-security design contributes to a highly reliable system

  • The latest security functions such as TPM2.0 and Secure Boot, as well as CONTEC's original functions including the Secure Boot USB Key are provided. This product is designed with the high security required for industrial applications in mind.
• CONTEC-customized BIOS provides useful utility

  • Useful utility of BIOS *1 customized by CONTEC is provided. The "CONTEC Fast Boot" achieves Windows startup in 10 seconds.*2 The "Disk Copy" function provides secure disk backup at the BIOS level, and also supports backup in file format or compressed file format. We also offer the CONTEC tools “BIOS update tool” for updating BIOS.*3
    *1 For details, see "BIOS Setup" in the manual. *2 It is the actual measured value when Windows 10 and HORM function are enabled at the factory. Time may vary depending on configuration. Note that TXE, TPM, Network Stack, and SMART Self Test are not supported when the CONTEC Fast Boot is enabled. *3 Contact your retailer for more information.
