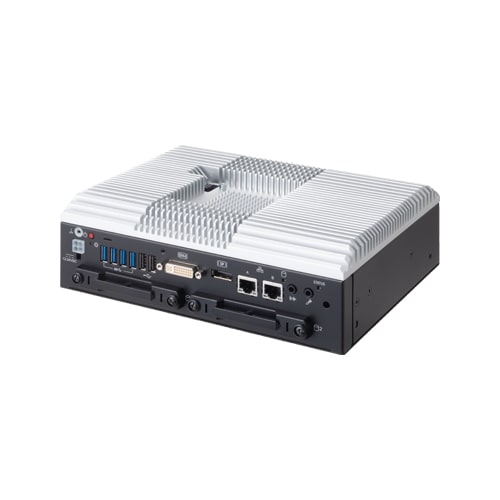

BX-M2510 BX-M2510 -Fanless Embedded PC / Intel 9th Gen. Xeon (Coffee Lake R + C246) / Wide range temperature / DC Power Supply

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • 9th generation Xeon, Core i5, Core i3, Celeron processor adopted
  • Operation capable in a wide temperature range between -10 and + 60°C
  • "Power failure protection system" features power-off without OS shutdown
  • High-security design contributes to a highly reliable system
  • CONTEC-customized BIOS provides useful utility
  • Major types of peripherals are supported with rich interfaces
  • *
    For details about an extended warranty, please contact us.

Similar models

Ordering Information

Ordering Information

Model Description Certification
BX-M2510-J804NA Xeon E-2278GEL / 8GB ECC RAM / Wide range temperature
  • CE marking
  • FCC compliant
  • VCCI
BX-M2510-J804L07W19 Xeon E-2278GEL / 8GB ECC RAM / 128GB SSD (TLC) / Power failure protection / Win10 IoT Ent. 2019 / Wide range temperature
  • CE marking
  • FCC compliant
  • VCCI
BX-M2510-J504NA Core i5-9500TE / 8GB RAM / Wide range temperature
  • CE marking
  • FCC compliant
  • VCCI
BX-M2510-J504L07W19 Core i5-9500TE / 8GB RAM / 128GB SSD (TLC) / Power failure protection / Win10 IoT Ent. 2019 / Wide range temperature
  • CE marking
  • FCC compliant
  • VCCI
BX-M2510-J404NA Core i3-9100TE / 8GB ECC RAM / Wide range temperature
  • CE marking
  • FCC compliant
  • VCCI
BX-M2510-J404L07W19 Core i3-9100TE / 8GB ECC RAM / 128GB SSD (TLC) / Power failure protection / Win10 IoT Ent. 2019 / Wide range temperature
  • CE marking
  • FCC compliant
  • VCCI
BX-M2510-J204NA Celeron G4900T / 8GB ECC RAM / Wide range temperature
  • CE marking
  • FCC compliant
  • VCCI
BX-M2510-J204L07W19 Celeron G4900T / 8GB ECC RAM / 128GB SSD (TLC) / Power failure protection / Win10 IoT Ent. 2019 / Wide range temperature
  • CE marking
  • FCC compliant
  • VCCI

Options

Power Supply / AC Adapter

Item Item Name
PWA-150AWD1 Switching AC Adapter 150W(12V/12.5A) Wide temperature range -20 to 70℃
PWA-90AWD1 AC Adapter(12VDC)

Storage

Item Item Name
SSD-128GS-2MP 2.5-inch 128GB SATA SSD MLC
SSD-128GS-2TP 2.5-inch 128GB SATA SSD TLC
SSD-1TS-2TP 2.5-inch 1TB SATA SSD TLC
SSD-256GS-2MP 2.5-inch 256GB SATA SSD MLC
SSD-256GS-2TP 2.5-inch 256GB SATA SSD TLC
SSD-32GS-2MP 2.5-inch 32GB SATA SSD MLC
SSD-512GS-2TP 2.5-inch 512GB SATA SSD TLC
SSD-64GS-2M 2.5-inch 64GB SATA SSD MLC

Other Accessories

Item Item Name
BX-FAN-06 External fan for forced air cooling
