Overview / Features

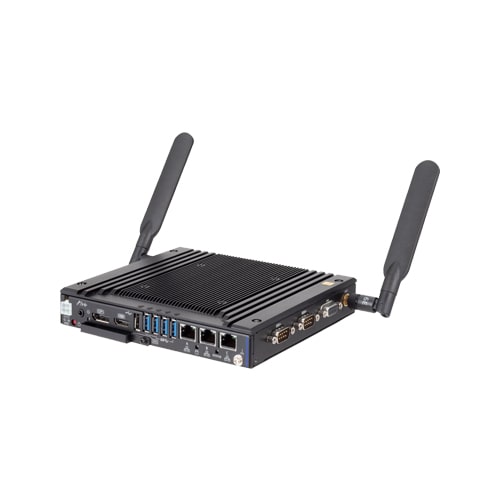

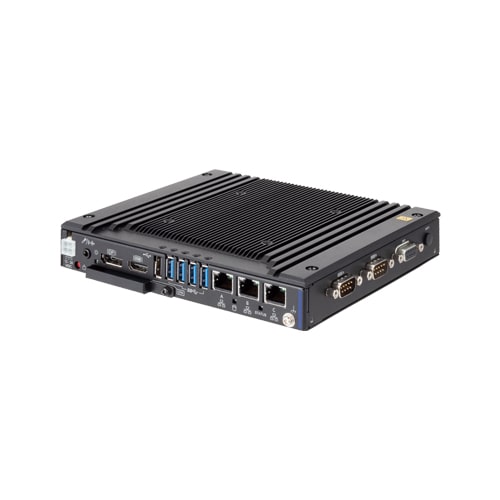

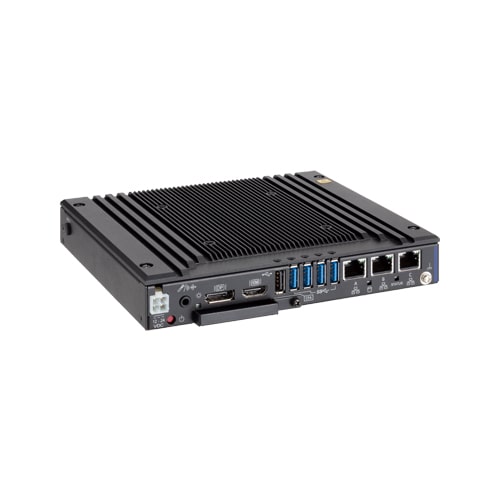

This product is a fanless computer for embedded applications with an 13th generation Intel CPU processor. It provides an ultra-compact design with a capability of operating in a wide temperature range (between -20 and + 60°C in an airflow environment of 0.7m/s). CPUs can be selected from Core i5- 1345URE and Core i3-1315URE processors. Addition to DisplayPort, a wide variety of interfaces including USB 3.2 Gen2 (USB 3.1) x 4, LAN x 3 and RS-232C x 2 are provided. The wireless models are equipped with wireless LAN for easy connection to digital devices, making them ideal as IoT gateway devices for connecting to peripherals.
Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, CONTEC-customized BIOS allows support to be provided at the BIOS level.
-
13th-generation Core i5, Core i3 processor adopted
- This product adopts the CPU that saves power consumption and also provides high computing and graphic performances. Embedded-type CPU makes the stable supply possible.
-
Ultra-compact design about as large as A5 size contributes to space-saving
- With a space-saving design of a thickness of 30.3 mm, a width of 182 mm, and a depth of 155 mm that is about A5 size.
-
"Power failure protection system" features power-off without OS shutdown
- Equipped with the "Power failure protection system" function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.
-
High-security design contributes to a highly reliable system
- The latest security functions such as TPM2.0 and Secure Boot, as well as CONTEC's original functions including the USB Boot Protect are provided. This product is designed with the high security required for industrial applications in mind.
-
Fan-less design reduces maintenance work
- The product is fan-less to ensure a totally spindle-less design that simplifies maintenance, relieving the concern about dust or foreign matter to get into the product. Moreover, along with minimized use of degrading parts greatly reduce maintenance work.
-
Rich interfaces for easy connection to various peripherals
- In addition to DisplayPort x1, USB 3.2 Gen2 (USB 3.1) x 4, USB 2.0 x 1, and LAN x 3 and RS-232C x 2 (one port can be used as RS-422A or 485), DIO x1 are equipped. The CFast card slot, which is easily replaceable, is used for storage and can be used as a writing area for logs and collected data. The wireless model can be connected to wireless LAN compatible devices.
