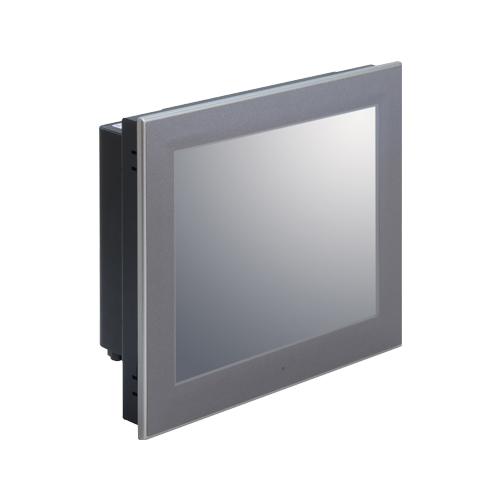

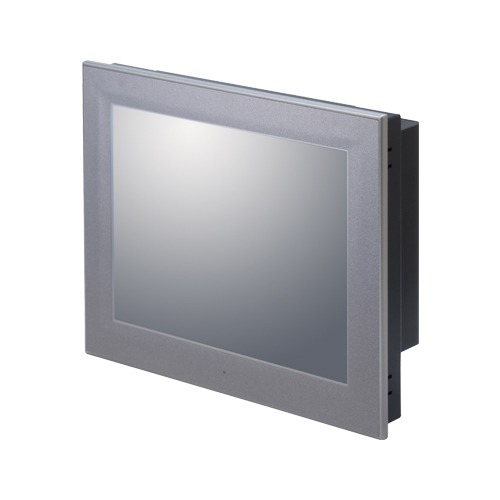

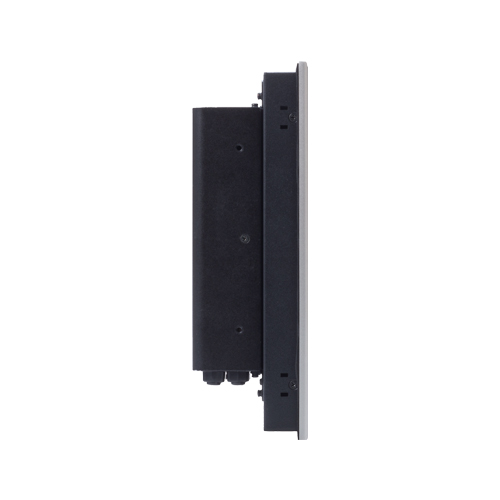

XPT-T1000LX XPT-T1000LX - Touch Screen PC / Panel Mountable / 12.1-inch LCD / Core i7-7600U (Kaby Lake) / DC Power Supply

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • 7th generation Core i7 processor adopted
  • Adopting a 5-wire resistive film touch-screen holds high durability
  • Major types of peripherals are supported with rich interfaces
  • A wide range of power supplies (10.8 - 31.2VDC) supported
  • "Power failure protection" features power-off without OS shutdown
  • Safety design required for embedded applications
  • *
    For details about an extended warranty, please contact us.

Similar Models

Ordering Information

Ordering Information

Model Description Certification
XPT-T1000LX BTO Model (12.1-inch LCD / Core i7-7600U / 8GB Memory)
  • CE marking
  • FCC compliant
  • VCCI
XPT-T1000LX-0230010 Core i7-7600U / 8GB RAM
  • CE marking
  • FCC compliant
  • VCCI
XPT-T1000LX-0230011 Core i7-7600U / 8GB RAM / AC Adapter
  • CE marking
  • FCC compliant
  • VCCI
XPT-T1000LX-0230310 Core i7-7600U / 8GB RAM / 256GB SSD(TLC) / Power failure protection
  • CE marking
  • FCC compliant
  • VCCI
XPT-T1000LX-0230311 Core i7-7600U / 8GB RAM / 256GB SSD(TLC) / Power failure protection / AC Adapter
  • CE marking
  • FCC compliant
  • VCCI
XPT-T1000LX-1230010 Core i7-7600U / 8GB RAM / 256GB SSD(TLC) / Power failure protection / Win10 IoT Ent.2019
  • CE marking
  • FCC compliant
  • VCCI
XPT-T1000LX-1230011 Core i7-7600U / 8GB RAM / 256GB SSD(TLC) / Power failure protection / Win10 IoT Ent.2019 / AC Adapter
  • CE marking
  • FCC compliant
  • VCCI
XPT-T1000LX-1230310 Core i7-7600U / 8GB RAM / 2×256GB SSD(TLC) / Power failure protection / Win10 IoT Ent.2019
  • CE marking
  • FCC compliant
  • VCCI
XPT-T1000LX-1230311 Core i7-7600U / 8GB RAM / 2×256GB SSD(TLC) / Power failure protection / Win10 IoT Ent.2019 / AC Adapter
  • CE marking
  • FCC compliant
  • VCCI
XPT-T1000LX-1232310 Core i7-7600U / 8GB RAM / 2×256GB SSD(TLC) / Power failure protection / Win10 IoT Ent.2019 / Software RAID
  • CE marking
  • FCC compliant
  • VCCI
XPT-T1000LX-1232311 Core i7-7600U / 8GB RAM / 2×256GB SSD(TLC) / Power failure protection / Win10 IoT Ent.2019 / Software RAID / AC Adapter
  • CE marking
  • FCC compliant
  • VCCI
  • *
    1 The attachable AC adapter is the "PWA-90AWD1 (Input :100-240VAC, Output:12VDC 7.5A).

BTO model

This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.

Storage
  • None
  • 1 x 100GB HDD (Last Order: 24 Mar, 2025)
  • 2 x 100GB HDD Mirroring (Software-RAID) (Last Order: 24 Mar, 2025)
  • 1 x 256GB SSD (MLC)
  • 2 x 256GB SSD (MLC) Mirroring (Software-RAID)
OS
  • None
  • Windows 10 IoT Enterprise 2019 LTSC 64-bit (Japanese/English/Chinese/Korean)
Option
  • None
  • AC Adapter

* There are combinations that cannot be configured. Please inquire in detail.



Options

Power Supply / AC Adapter

Item Item Name
PWA-90AWD1 AC Adapter(12VDC)

Storage

Item Item Name
PC-HDD100GS-2 2.5-inch 100GB SATA Hard Disk Drive
SSD-256GS-2M 2.5-inch 256GB SATA Solid State Drive
SSD-256GS-2TP 2.5-inch 256GB SATA SSD TLC

Other Accessories

Item Item Name
IPC-CV12 Protection Cover for 12.1-inch PANEL-PC (10Sheet/Set)
