PT-955S PT-955S - Touch Screen PC / Panel Mountable / 12.1-inch LCD / 15-inch LCD / Atom N2600 + NM10 / DC Power Supply

  • Discontinued
  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • End of Repair Service: 2024/08/31

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Approximately twice the CPU calculation capability together with highspeed storage
  • Enables reductions in power consumption of approximately 15%
  • Improved durability due to its 5-wire resistive film touch panel
  • Slitless/fanless design that reduces maintenance work
  • Major types of peripherals are supported with rich interfaces including the two CFast card slots
  • Falling-off prevention tools and cable clamps provided to avoid trouble caused by disconnected cable
  • *
    For details about an extended warranty, please contact us.

Overview / Features

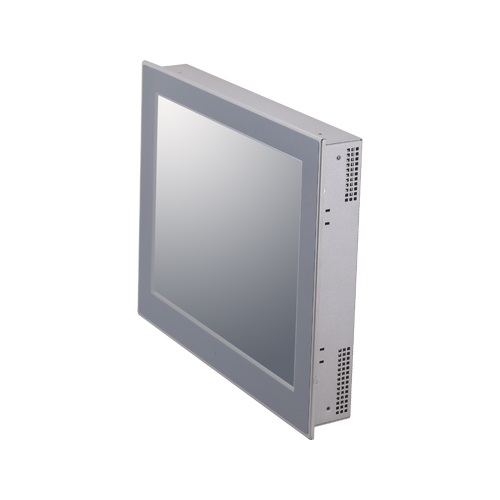

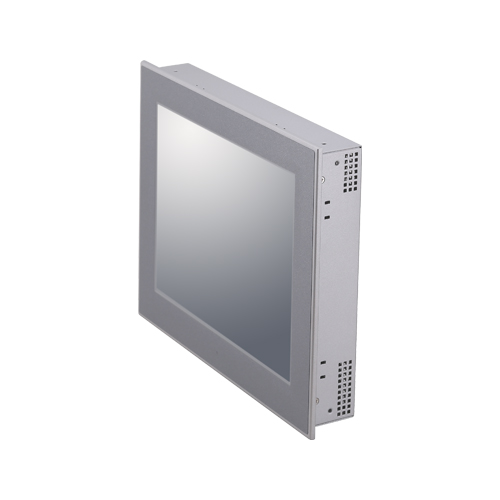

This product is a fanless Panel-PC that is equipped with an Intel? Atom N2600 1.6GHz, energy-saving, dual core processor. This product uses a long-life and energy-saving LED backlight and Atom processor as well as CFast cards for data storage. This product has achieved low power consumption while still providing sufficient performance. Also, this product uses a 5-wire resistive film touch panel, which has improved durability.

  • Approximately twice the CPU calculation capability together with highspeed storage
    • By using an Intel Atom N2600, this product has achieved high calculation capabilities. For example, the CPU processing capability is approximately twice*1 that of our conventional product, the PT-955LX. In addition, the use of CFast cards has remarkably improved the speed of data reading and writing.
  • Enables reductions in power consumption of approximately 15%
    • While this product possesses greatly improved CPU and graphical performance, its power consumption is approximately 15% lower*2 than our conventional product, the PT-955HX. This product contributes to the promotion of energy conserving initiatives by only requiring a low power consumption of approximately 43W even under a high load while still maintaining sufficient performance.
  • Improved durability due to its 5-wire resistive film touch panel
    • This product uses a 5-wire resistive film touch panel that has excellent durability, which provides a long operating lifetime. Compared to our conventional product, the PT-955 Series, the number of operations has increased from 10 million to 36 million*3.
  • Slitless/fanless design that reduces maintenance work
    • This product's spindleless design eliminates the heat dissipating slit and CPU fan and adopts CFast card for the storage. It is free from dusts and foreign objects, and the use the parts that degrades over the years is
      avoided in most case, resulting in drastic alleviation of the maintenance burden.
  • Major types of peripherals are supported with rich interfaces including the two CFast card slots

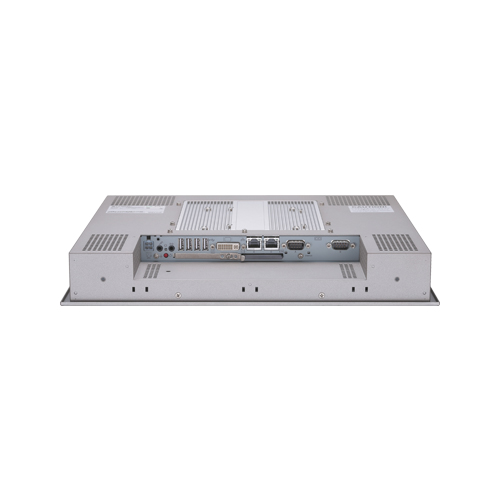

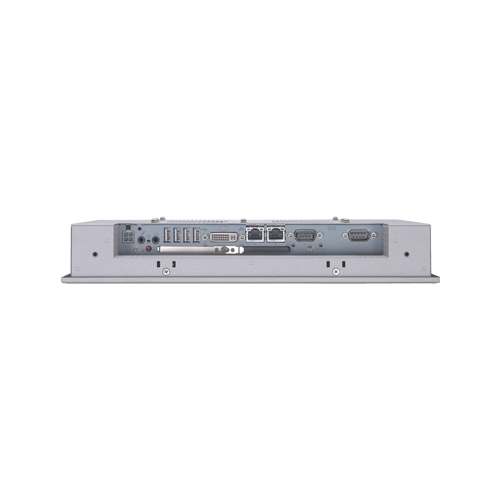

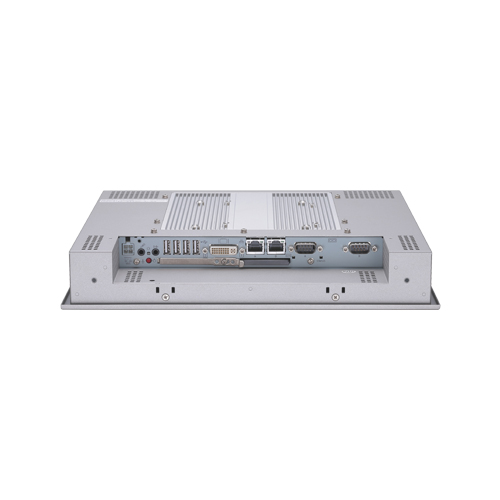

    • It has a variety of extended interface such as 1000BASE-T x 2, USB2.0 x 4, serial (RS-232C) x 2. It has 2 CFast card slots that can use for OS and data. They are very useful because you can use one slot for system start-up and the other for maintenance, system log, or taking away the collected data.
  • Falling-off prevention tools and cable clamps provided to avoid trouble caused by disconnected cable
    • This product stays trouble-free, being equipped with USB removal prevention fitting and cable clamp for connectors with no locking mechanism, such as USB cable, and with hardware to properly mount and avoid falling out of CFast card.
