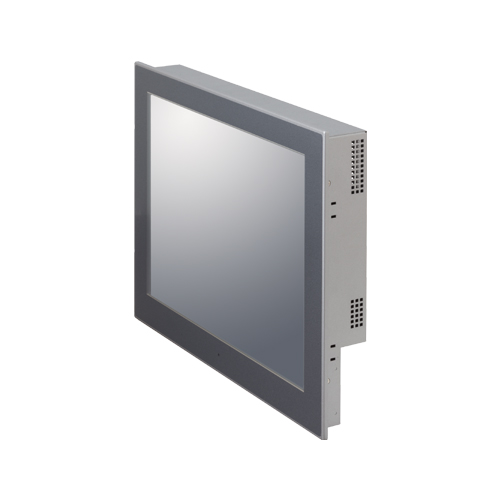

PT-956SHX PT-956S - Touch Screen PC / Panel Mountable / 15-inch LCD / Atom E3845 (BayTrail SoC) / DC Power Supply

  • Discontinued
  • Standard Warranty3 yr
  • Extended WarrantyAvailable
  • モーダルで開く
  • End of Repair Service: 2031/04/18

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Fanless design that reduces maintenance work
  • Remote power management function to reduce operation tasks
  • Adopting a 5-wire resistive film touch-screen holds high durability
  • High definition supported DVI external display output
  • CFast retention fitting and cable tie provided to avoid trouble caused by disconnected cable
  • Safety design required for embedded applications
  • *
    For details about an extended warranty, please contact us.

Similar Models

Ordering Information

Replacement Product

Model Definition
PT-M15SA - Touch Screen PC / Panel Mountable / 15-inch LCD, with resistive touch panel / Atom x5 E3940 (Apollo Lake SoC) / DC Power Supply
PT-M15SA-210		 For details, please see datasheets and manuals.

Ordering Information

Model Description Certification
PT-956SHX-DC700000 [Discontinued] [End of Repair Service : April 18, 2031] 15 inch LCD (XGA), 4GB Memory , (w/o OS, w/o Storage)
  • CE marking
  • FCC compliant
  • VCCI
PT-956SHX-DC731314 [Discontinued] [End of Repair Service : February 27, 2031] 15 inch / XGA / 4GB Memory / 16GB CFast(SLC) / WES7P 32-bit (English, Chinese, Japanese, Korean)
  • CE marking
  • FCC compliant
  • VCCI
PT-956SHX-DC781724 [Discontinued] [End of Repair Service : April 18, 2031] 15 inch / XGA / 4GB Memory / 32GB CFast(Q-MLC) / Win10 LTSB 2016 64-bit (English, Chinese, Japanese, Korean)
  • CE marking
  • FCC compliant
  • VCCI
PT-956SHX-DC7D1724 [Discontinued] [End of Repair Service : April 18, 2031] 15 inch / 4GB ECC RAM / CFast 128GB TLC(Support Power Failure Protection / Win10 IoT LTSB 2016
  • CE marking
  • FCC compliant
  • VCCI
PT-956SHX-DC800000 [Discontinued] [End of Repair Service : April 18, 2031] 15 inch / XGA / 4GB Memory /(w/o OS, w/o Storage)
  • CE marking
  • FCC compliant
  • VCCI
PT-956SHX-DC861724 [Discontinued] [End of Repair Service : April 18, 2031] 15 inch / XGA / 8GB Memory / 32GB CFast(MLC) / Win10 LTSB 2016 64-bit (English, Chinese, Japanese, Korean)
  • CE marking
  • FCC compliant
  • VCCI
PT-956SHX-DC881724 [Discontinued] [End of Repair Service : April 18, 2031] 15 inch / LCD / 8GB Memory / 32GB CFast(Q-MLC) / Win10 LTSB 2016 64-bit (English, Chinese, Japanese, Korean)
  • CE marking
  • FCC compliant
  • VCCI
PT-956SHX-DC8C1724 [Discontinued] [End of Repair Service : April 18, 2031] 15 inch / 8GB ECC RAM / CFast 40GB iSLC(Support Power Failure Protection) / Win10 IoT LTSB 2016
  • CE marking
  • FCC compliant
  • VCCI
PT-956SHX-DC8D1724 [Discontinued] [End of Repair Service : April 18, 2031] 15 inch / 8GB ECC RAM / CFast 128GB TLC(Support Power Failure Protection) / Win10 IoT LTSB 2016
  • CE marking
  • FCC compliant
  • VCCI

Options

Power Supply / AC Adapter

Item Item Name
PWA-65AWD1 AC Adapter(12VDC)
PWA-90AWD1 AC Adapter(12VDC)

Storage

Item Item Name
CFS-128GBTP-A 1.0-inch 128GB SATA CFast Card (TLC)
CFS-16GB-A 1.0-inch SATA CFast Card (SLC)
CFS-16GBQ-A 1.0-inch 16GB SATA CFast Card (Q-MLC)
CFS-32GBM2-A 1.0-inch 32GB SATA CFast Card (MLC)
CFS-32GBQ-B 1.0-inch 32GB SATA CFast Card (Q-MLC)　(Wide temperature range spec)
CFS-40GBIP-A 1.0-inch 40GB SATA CFast Card (iSLC)
CFS-A 1.0-inch SATA CFast Card (SLC)

Other Accessories

Item Item Name
IPC-CV15 Protection Cover for 15-inch PANEL-PC (10Sheet/Set)
