New Product Release - Three-Phase Motor Insulation Deterioration Monitoring Module for Continuous Breakdown Prediction Monitoring of Operating Equipment A Device That Will Revolutionize Maintenance of Pumps, Compressors, A/C Fans, Metalworking Machines, and Transport Equipment

  • Product & Service

Africa、Asia、Europe、Japan、Middle East、North America、Oceania、Latin America

　CONTEC Co., Ltd. (listed on the Second Section of the Tokyo Stock Exchange, Securities Code: 6639—hereinafter "CONTEC") has developed a functional module (model: CPS-MM-LC) that can be used for continuously monitoring operating three-phase motors for signs of insulation deterioration. This new breakdown prediction monitoring solution from the CONPROSYS™ brand of industrial IoT products was released for sale on October 2, 2018.

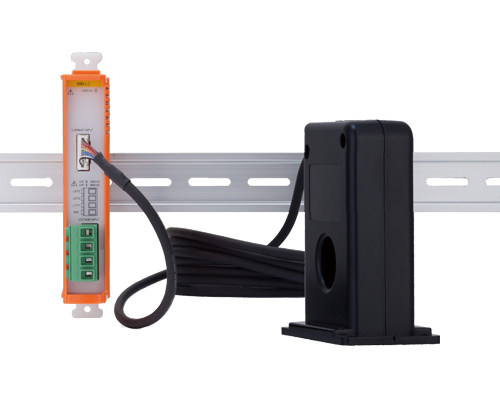

CPS-MM-LC

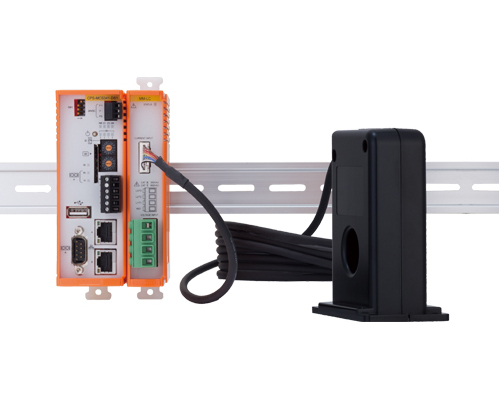

Combination with IoT controller

Model Product name Specification
CONPROSYS™
Three-phase motor insulation deterioration
monitoring module 		Number of measurement channels: 1 ch
Circuit to be measured: Power supply mode, inverter mode
ZCT inside diameter: ⌀25 mm
Measured voltage range: Phase voltage 10 VAC to 600 VAC
Measured current range: 0 to 1 A (power supply), 0 to 100 mA (inverter)
Resolution: 0.001 mA
Measured insulation resistance range: Less than 1,000 MΩ

Example of System configuration
