New Product Release: Supports Wide range 5 to 36VDC! High-Speed Digital I/O Card with 60μsec Conversion Speed and 16 Input and 16 Output for PCI Express

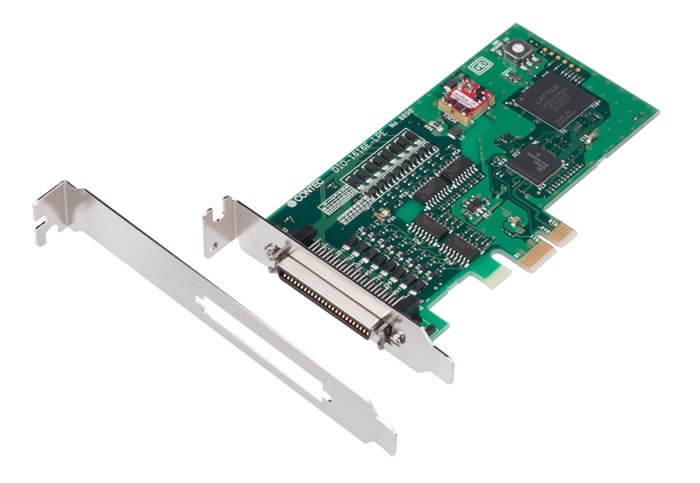

Contec is pleased to present the new DIO-1616E-LPE, low profile type PCI Express bus Digital I/O card with 16-bit opto-coupler isolated input and 16-bit opto-coupler isolated open-collector output of wide range signals (5 to 36VDC). Sales for the new series began November 17, 2020.
DIO-1616E-LPE is a PCI Express bus-compliant interface card that extends the digital signal I/O functions of a PC. This product has opto-coupler isolated input 16ch and opto-coupler isolated open-collector output 16ch and can input and output wide range signals (5 to 36VDC). You can use all the input signals as interrupt inputs. In addition, equipped with the digital filter function and protection circuit (surge voltage protection and overcurrent protection).
- Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
This product has the opto-coupler isolated input 16ch (supporting current sink output) whose response speed is 60 μsec (max.) and opto-coupler isolated open-collector output 16ch (current sink type) whose response speed is 60 μsec (max.). Supporting driver voltages of 5 to 36 VDC for I/O.
- Opto-coupler bus isolation
As the PCI Express bus (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise performance.
- All input signals can be used as interrupt inputs
You can use all the input signals as interrupt request signals, also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt.
- Equipped with digital filter to prevent wrong recognition of input signals from carrying noise or a chattering
This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
- Windows/Linux compatible driver libraries
Using the driver library API-PAC(W32) makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
- LabVIEW-support data acquisition library DAQfast for LabVIEW (planning)
DAQfast is a data collection library with Polymorphic VI to operate seamlessly for use in the LabVIEW by National Instruments.
