New Product Release: PT-M and PT-F Series Panel Computers Featuring Analog Resistive Touch Panels and Intel® Atom® Bay Trail CPUs

  • Product & Service

Africa、Asia、Europe、Japan、Middle East、North America、Oceania、Latin America

Contec has developed four new fanless industrial computers with integrated touchscreens (one PT-M Series device and three PT-F Series devices) with analog resistive touch panels and Intel Atom E3845 quad-core CPUs (Bay Trail). Sales of these new products started on June 8, 2021.

Product photo PT-M07WA-120-J103NA

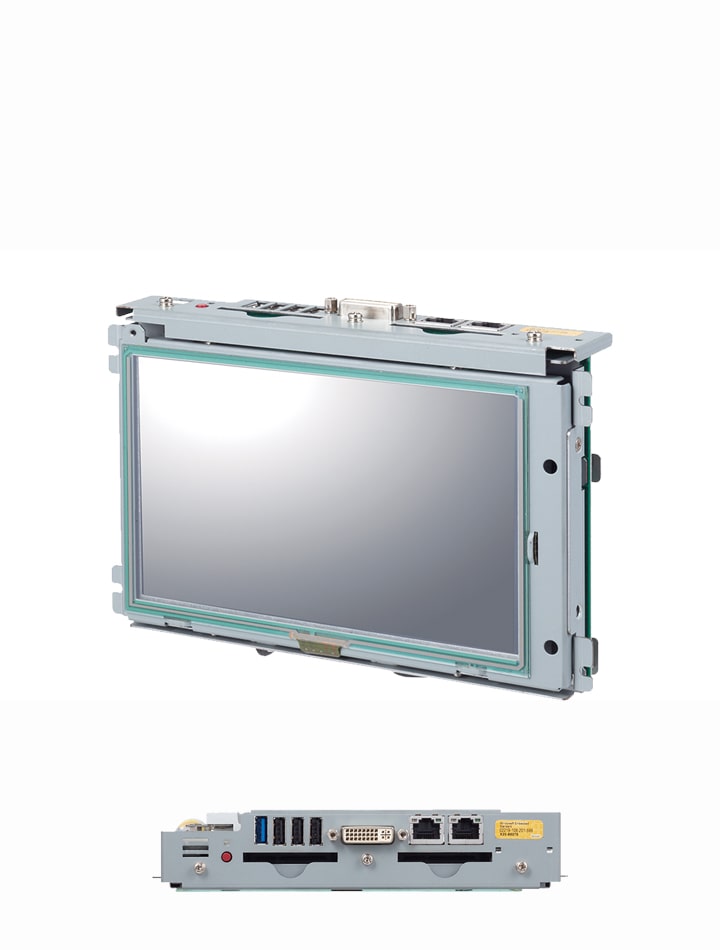

Product photo PT-F07WA-100-J103NA

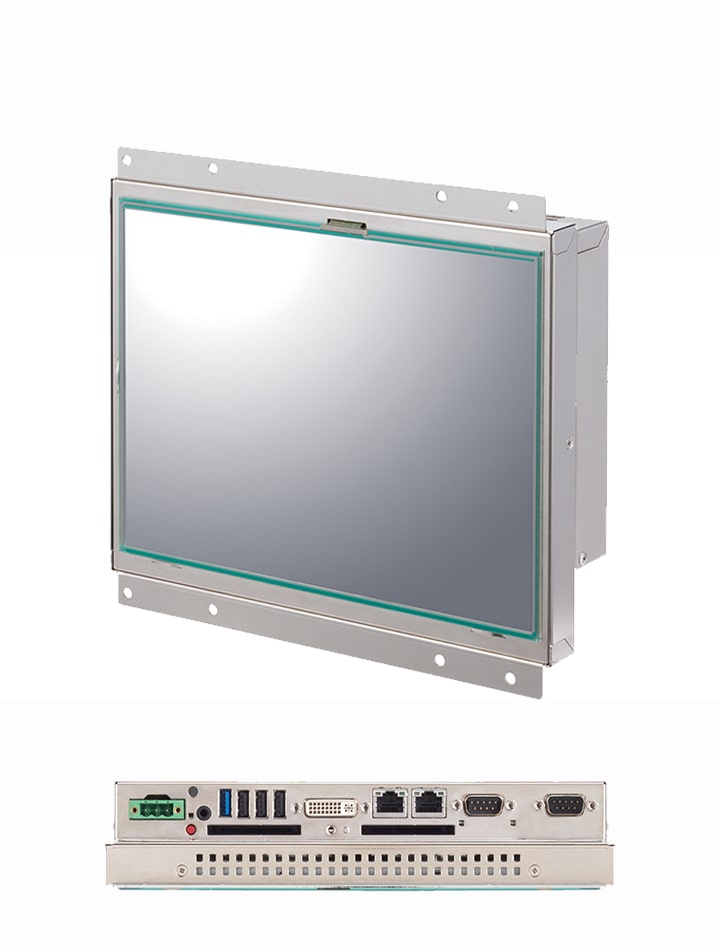

Product photo PT-F10SA-120-J103NA

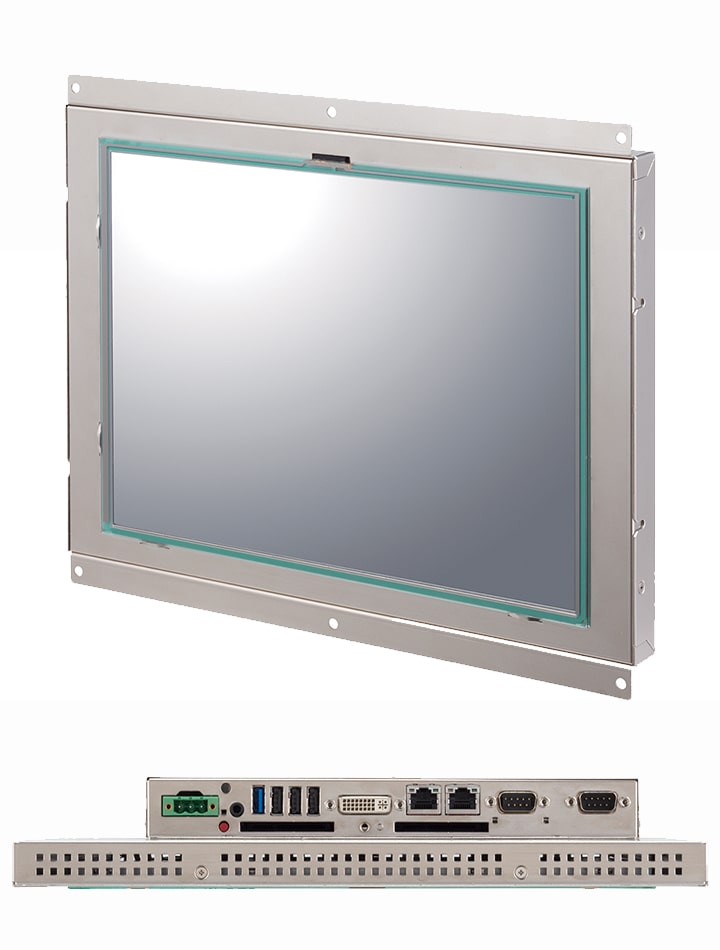

Product photo PT-F12SA-120-J103NA

Model*1 Mounting LCD size / Touch panel CPU / Memory / Storage / OS*2
PT-M07WA-120-J103NA Panel-mount 7” WVGA (800×480) / Analog resistive touch Atom E3845 1.91GHz Quad-core / 4GB ECC / None / None
PT-F07WA-100-J103NA Open-frame
PT-F10SA-120-J103NA 10.4” XGA (1024x768) / Analog resistive touch
PT-F12SA-120-J103NA 12.1” XGA (1024x768) / Analog resistive touch
  • *1
    These are built-to-order products. Contact us to request an evaluation device.
  • *2
    Products installed with Windows 10 or 7 are also available. Contact us for more information.

These new products are fanless touch panel computers equipped with Intel Atom E3845 (Bay Trail) quad-core CPUs along with 7-, 10.4-, or 12.1-inch touch panels.

The products are equipped with expansion interfaces including 1000BASE-T, USB 3.2 Gen 1 (USB 3.0), USB 2.0, DVI-I, CFast card slots, RS-232C, and DIO*3.

Equipment installation methods include open-frame and panel-mounted options to suit a variety of applications. The strong frame used in open-frame types allows for use with a wide range of equipment without the need for an enclosure, while the rear-mounted construction allows for a flush mounting surface and screen. Panel-mounted types are embedded from the front for easy installation, and the IP65-rated enclosure prevents dust and water droplets from entering.

  • *3
    Applies to PT-F07WA-100-J103NA devices only.

Main Features

  • Two installation types available

    Choose from open-frame and panel-mounted installation types.

  • Contributing to running cost reduction and energy efficiency

    Adopting the low-power platform of Intel Atom Processor E3845 achieves lower power consumption while still ensuring sufficient performance.

  • High definition supported DVI external display output

    This product has up to 1920 x 1080 pixels DVI external display output as standard feature. A standalone two-display application which, for example, displays the screen on a big LCD TV separately from the main LCD, can be built.

  • A wide range of power supplies (10.8 to 31.2VDC) supported

    As the product supports a wide range of power (10.8 to 31.2VDC), it can be used in a variety of power environments.

  • Fanless design that reduces maintenance and inspection work

    This product employs a CFast card for storage and the spindle-less design eliminates CPU fan. It relieves the concern about dust or foreign matter to get into the product. Furthermore, using the parts that degrade over time is minimized to reduce maintenance load.

  • Remote power management function to reduce operation tasks

    It supports system start-up externally via network (Wake On LAN) and modem (Power On by Ring). It encourages significant labor saving in operation.
