New Product Release: 10th Gen. Comet Lake-S Industrial Motherboard GMB-IW48000
Mini-ITX form factor with Intel W480E PCH (ECC or Non-ECC Support)

  • Product & Service

Africa、Asia、Europe、Middle East、North America、Oceania、Latin America

 Contec has developed new Mini-ITX form factor Industrial Motherboard (Model: GMB-IW48000) with 10th Gen Intel® Core processors (Comet Lake-S) for support Microsoft Windows 10 IoT Enterprise 2019, includes open source options and Intel® W480E PCH (ECC or Non-ECC Support). This new product will release for sale on July 28, 2021.

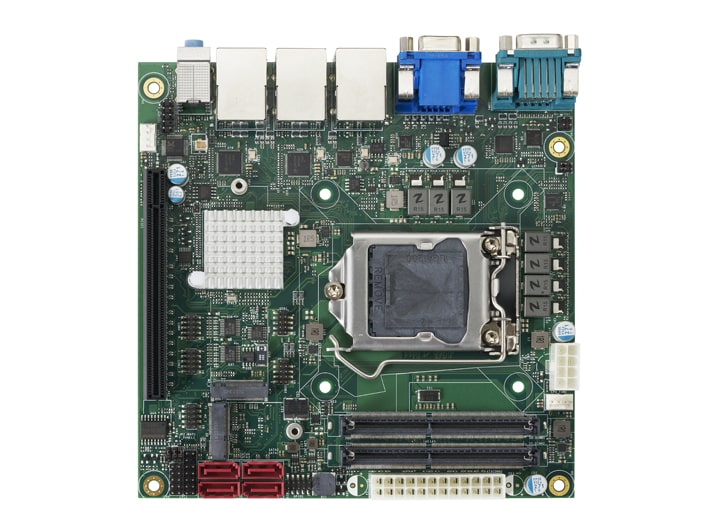

Top View

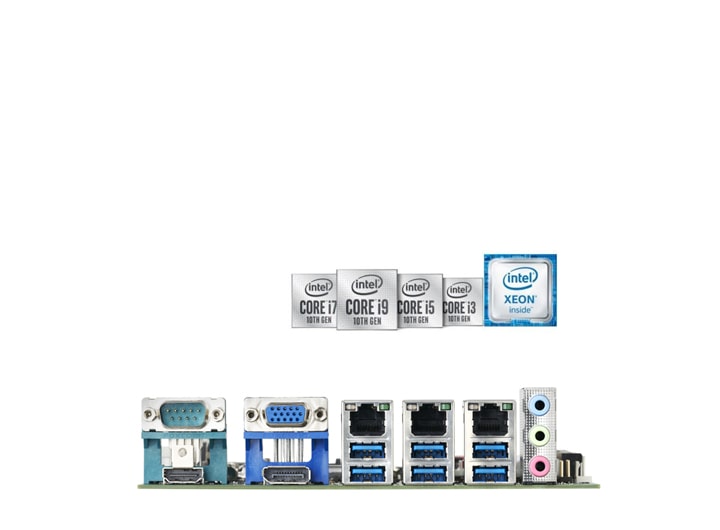

Rear I/O

Model CPU / Memory / Storage
GMB-IW48000 Xeon® W-1290E, Xeon® W-1270E, Core i9, Core i7 / DDR4-2933
Xeon® W-1250E, Core i5, Core i3 / DDR4-2666

 GMB-IW48000 supports 10th Gen Intel® Xeon W-1200E series processors, includes support Microsoft Windows 10 IoT Enterprise 2019 as well as up to 64GB DDR4-2666 SO-DIMM with ECC available to detect and repair errors that cause data corruption and system crashes. Moreover, software RAID (Redundant Array of Independence Disks) function is supported to ensure data security and backup requirements.

 The product up to 10 cores and 20 threads for improved throughput, LGA 1200 socket scalability, embedded use conditions, and long-term product availability, 10th Gen Intel Core processors provide a solid foundation for IoT platforms.

Main Features

  • Better performance and protection

    GMB-IW4800 design based on Comet Lake-S platform features up to 10 cores, hyper threading on all models, single-core turbo boost up to 5.3GHz which is 300MHz higher, all-core turbo boost up to 4.9 GHz, DDR4-2933 memory support for the i7 and i9, and DDR4-2666 for i3, and also 10th Gen Intel® Core™ i3 and Intel Xeon W-1200E Series processors include error-correcting code (ECC) capabilities

  • Media & Display Features for Premium 4K Content Support

    Support for three simultaneous, independent displays Edge devices with a 10th Gen Intel Core processor inside have three external device driver interface (DDI) ports, allowing you to connect to up to three different 4K displays. Each DDI port includes built-in high-bandwidth digital content protection to help you defend data in transit against breaches.

  • Software RAID available

    GMB-IW48000 build-in 4 SATA connector support RAID 0, 1 ,5,10 level function. When connecting 2 to 4 HDD or SSD storage device allows customers to expand the capacity and do storage devices maintenance easily. Moreover, the RAID function can guarantee data security and fulfill backup requirement.

  • A wide range of power supplies (10.8 to 31.2VDC) supported

    As the product supports a wide range of power (10.8 to 31.2VDC), it can be used in a variety of power environments.

  • Expansion Slot & Extend Peripherals Rich Interface

    This product has 3 kinds expansion slots, M.2 key M 2242 and full-sized PCIe x16, as well as interfaces includes VGA, DisplayPort, HDMI, 1000BASE-T × 3, USB3.2 Gen 2 × 6, USB2.0 × 4, serial (RS-232C) × 3, serial (RS-232C/422/485) × 1.

  • Manageability at the edge

    GMB-IW48000 with Intel® Active Management Technology (Intel® AMT), a feature of the Intel vPro® platform, enables IT to access, maintain, and manage edge devices that are off-site or difficult to physically access—even when the device, hardware, or operating system are powered off or malfunctioning.
