Bringing the Convenience of Raspberry Pi to FA and Measurement Control
New Models Added: CPI Series HAT-Size Card with Raspberry Pi® Support

  • Product & Service

Africa、Asia、Europe、Japan、Middle East、North America、Oceania、Latin America

Contec has developed three new models and a DIN rail mounting kit for its CPI Series HAT-size cards for utilizing Raspberry Pi® computers in factory automation and measurement control applications. Sales of the new models and mounting kit started on November 2, 2021.

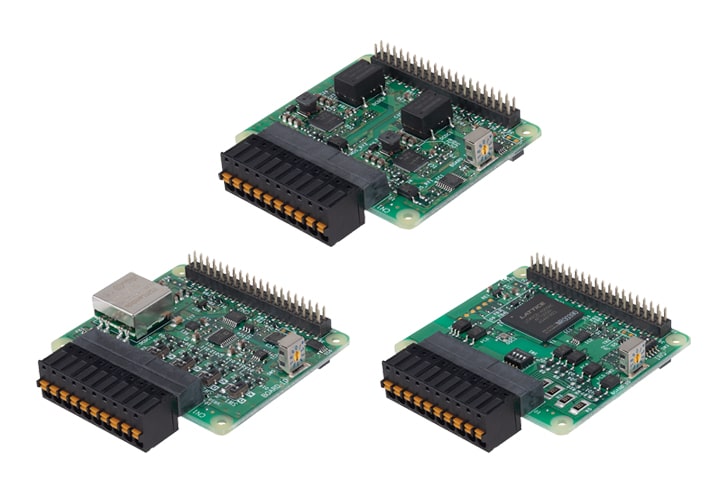

CPI-AI-1208LI（Left）, CPI-AO-1602LC（Middle）, CPI-CNT-3201I（Right）

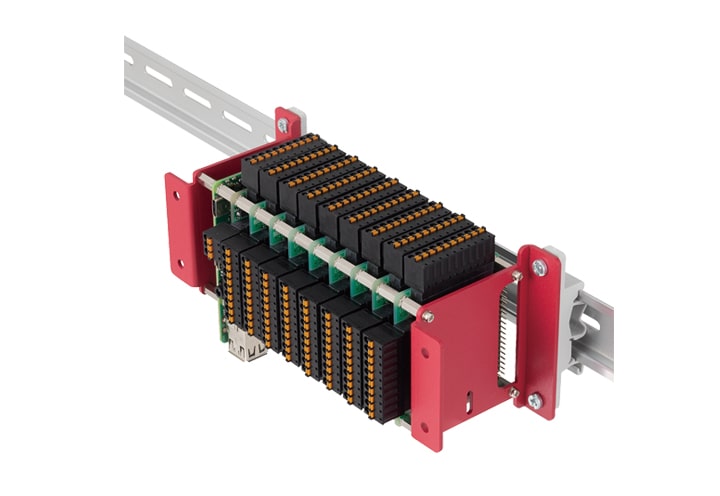

Example usage of DIN rail mounting kit

Product Lineup

Model Function Specifications
【New】CPI-AI-1208LI Analog input card 12bit 8ch with bus isolation
【New】CPI-AO-1602LC Analog output card 16bit 2ch with channel isolation
【New】CPI-CNT-3201I Isolated 32-bit Up/Down counter card
【New】CPI-DIN01 DIN Rail Adapter
CPI-RAS Support for a wide range of power supply inputs (8 to 28 VDC), 5 VDC internal power supply
5 VDC external power supply output (with ON/OFF control), RTC (real-time clock)
WDT (watchdog timer), Hardware monitor (CPU temperature / power supply voltage)
LED lighting control (green/red), General digital I/O
CPI-DIO-0808L Isolated digital inputs 8ch and isolated digital outputs 8ch card
CPI-DIO-0808RL Isolated digital inputs 8ch (negative-common) and isolated digital outputs 8ch (negative-common) card
CPI-DI-16L Isolated digital inputs 16ch card
CPI-DO-16L Isolated digital outputs 16ch card
CPI-DO-16RL Isolated digital outputs 16ch (negative-common) card
CPI-RRY-16 Semiconductor relay outputs 16ch card

Main Features

  • Push-type terminal block for easy wiring

    The CPI Series includes a push-type terminal block for convenient, simple connection and disconnection of wired HATs without the need for tools or crimping terminals.

  • Stacked connection of up to 8 cards

    Contec has expanded HAT specifications to include address ID configurability, making it possible to connect up to eight stacked cards.

    • *
      Connection to HATs from other manufacturers is also possible.
    • *
      Use a Contec RAS function expansion card for stable power supply with stacked connections.
  • Free downloadable Python-compatible API and sample programs

    Linux driver (API-TOOL for Linux) can be downloaded for free from the company’s website along with sample Python and GCC programs, allowing users to begin programming right away.

  • API compatible with PC expansion cards

    Take advantage of API compatibility with Contec PCI Express, PCI, USB, and Ethernet-type measurement control devices. Development assets can be reused across multiple platforms.

Related Links

  • *
    The information included is current as of the publication date. The sales conditions, price, and specifications may be changed without notice.
  • *
    Company names and product names are generally trademarks or registered trademarks of each company.
