New Product Release: High Reliability and Various Expansion I/O EATX Industrial Motherboard GMB-EAC62100 with 3rd Generation Intel® Xeon® Scalable Processor

  • Product & Service

Africa、Asia、Europe、Middle East、North America、Oceania、Latin America

Contec has developed new Extended ATX (E-ATX) form factor Industrial Motherboard (Model: GMB-EAC62100) with 3rd generation Intel® Xeon scalable processors (Code Name: Ice Lake-SP) for support Microsoft Windows 10 IoT Enterprise 2019 and Windows Server IoT Standard 2019. The company will begin receiving orders for the GMB-EAC62100 in April 2022.

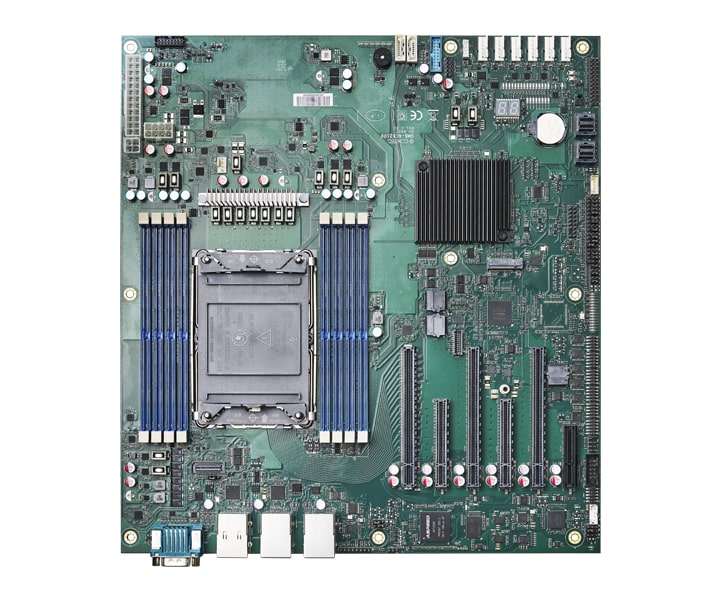

Top View

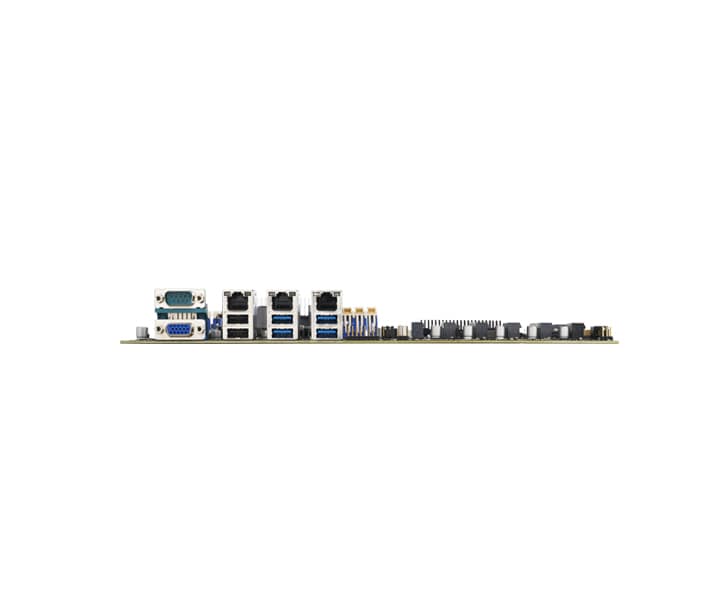

Rear I/O

CPU Selection Menu

3rd Generation Intel® Xeon® Scalable Processors base on intel IOTG* (105W to 205W TDP)
CPU No. TDP Core Cache Max Speed Memory type
Gold 6330 205W 28 42MB 3.10 GHz DDR4-2933
Silver 4314 135W 16 24MB 3.40 GHz DDR4-2666
Silver 4316 150W 20 30MB 3.40 GHz DDR4-2666
Gold 5318Y 165W 24 36MB 3.40 GHz DDR4-2933
Gold 5317 150W 12 18MB 3.60 GHz DDR4-2933
Gold 6326 185W 16 24MB 3.50 GHz DDR4-3200
Silver 4310 120W 12 18MB 3.30 GHz DDR4-2666
Gold 6338T 165W 24 36MB 3.40 GHz DDR4-3200
Gold 6336Y 185W 24 36MB 3.60 GHz DDR4-3200
Silver 4310T 105W 10 15MB 3.40 GHz DDR4-2666
Gold 5320T 150W 20 30MB 3.50 GHz DDR4-2933
Gold 5315Y 140W 8 12MB 3.60 GHz DDR4-2933

GMB-EAC62100 is designed for server grade high performance E-ATX industrial motherboard with 3rd generation Intel® Xeon® Processor families, which is designed for high performance edge computing, AI / Deep Learning and GPU solution. It features Single CPU, up to 256GB 8 x DDR4-3200/2933/2666MHz (by CPU SKU) with ECC, 3 slots PCIe x 16, 2 slots PCIe x8, 1 slot PCIe x4, onboard dual Giga Lan ports, 6 x USB 3.0, and 3 x USB 2.0. Rich I/O expansion fulfill customer needs especially in Industrial IoT, Machine vision, and AI / Deep Learning applications. Besides, it is Contec’s first server grade motherboard with high reliability, long life components, availability and maintainability based on 24-hours operation.

The product offers up to 4 hot-swappable hardware RAID configurations. Furthermore, the advanced edge computing environment for Image processing, Machine vision, AI / Deep Learning and more is provided.

Main Features

  • Compatible with Intel® Ice Lake-SP platform

    This product is equipped with the 3rd generation Intel® Xeon® scalable processor by LGA-4189 sockets, CPU TDP up to 205W as listed above.
    Intel® Xeon® Gold Processor.
    Intel® Xeon® Silver Processor.

  • HPC and GPU computing support

    The high-performance computing (HPC) environment that can be used for Image processing, Machine vision and AI / Deep Learning is provided.

  • Adopt Removable Storage

    The product adopts front accessible 4 x 2.5” or 3.5” SATA storages and support RAID function such as mirroring.

  • BMC function

    ASPEED AST2500 Advanced PCIe Graphics & Remote Management Processor that is onboard support Baseboard Management Controller provides customers with the best performance server management solution for system management and IPMI control.

  • Support Windows 10 IoT Enterprise 2019 LTSC and Windows Server IoT 2019

    The LTSC (Long Term Servicing Channel) version of Windows is installed to discourage unnecessary restarts or unwanted feature updates for operational applications. The product has a lockdown function that is useful for the developing secure dedicated terminals. A user can select a language from English, Chinese, Japanese, or Korean in Windows 10 IoT Enterprise 2019 LTSC 64-bit, and can decide to use Windows Server IoT 2019*, which is suitable for edge servers that require server-class multiple processing and network performance.

    • *
      Coming soon.
