Contec has added the new ATX form factor Industrial Motherboard (Model: GMB-AQ47000) with 10th Gen Intel® Core processors (Comet Lake-S) for support Microsoft Windows 10 IoT Enterprise 2019, Build-in Intel® Q470E PCH includes 125W(TDP) processor support.

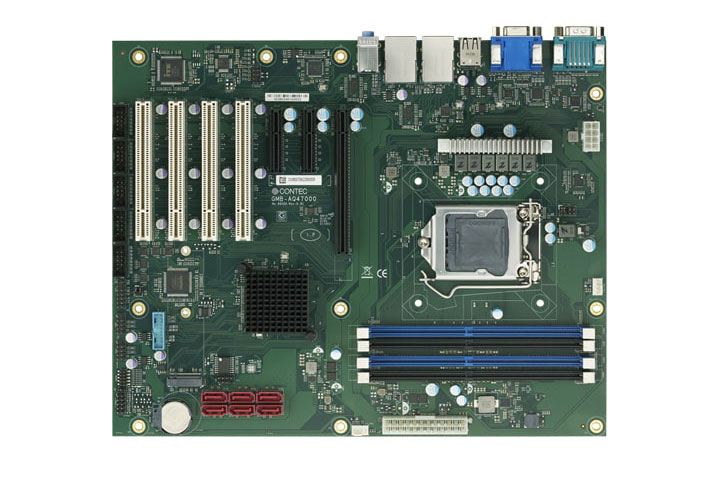

GMB-AQ47000

GMB-AQ47000 supports 10th Gen Intel processor with Q470E chipset. Software RAID (Redundant Array of Independence Disks) function is supported to ensure data security and backup requirements. Other storage option includes M.2 Key M 2280 NVMe SSD for increased the read/ write performance.

The Product Range from 4 to 10 cores for improved throughput, LGA 1200 socket scalability, embedded use conditions, and long-term product availability, 10th Gen Intel® Core™ processors provide a solid foundation for IoT platforms.

Main Features

• High-end Server Grade Performance and Protection

  GMB-AQ47000 design based on Comet Lake-S platform features up to 10 cores, hyper threading on all models, single-core turbo boosts up to 4.8 GHz. DDR4-2933 memory supports for 10th Gen Intel® Core™ / Pentium®/Celeron® processors include Core i9-10900K capabilities.

• Media & Display Features for Premium 4K Content Support

  Support for three simultaneous, independent displays Edge devices with a 10th Gen Intel Core processor inside have three external device driver interface (DDI) ports, include 1 x HDMI, 1 x DP, 1 x VGA, support 4K up to 4096x2304@60Hz with Intel® UHD Graphics 630.

• Software RAID Available

  GMB-AQ47000 build-in 6 x SATAIII connector support RAID 0, 1 ,5,10 level function. When connecting 2 to 4 HDD or SSD storage device allows customers to expand the capacity and do storage devices maintenance easily. Moreover, the RAID function can guarantee data security and fulfill backup requirement.

• Rich I/O Design for Expansion Slots & Extend Peripherals

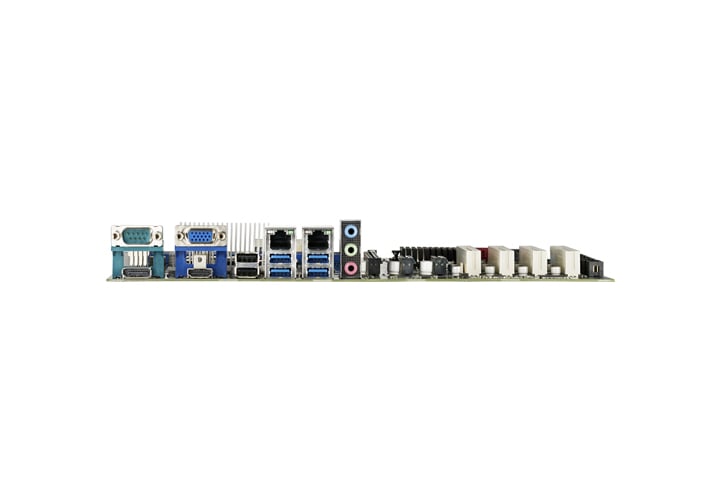

  This product has 1 x PCIe x16, 2 x PCIe x4, and 4 x PCI slots. For M.2 interface support 1x M.2 M-key 2242/2280 type. 2 x Giga LAN by Intel® controller,6 x COM, 6 x USB 2.0, and up to 6 x USB 3.2. Rich I/O design can fulfill expansion requirements.

• Manageability at the Edge

  GMB-AQ47000 with Intel® Active Management Technology (Intel® AMT), a feature of the Intel vPro® platform, enables IT to access, maintain, and manage edge devices that are off-site or difficult to physically access—even when the device, hardware, or operating system are powered off or malfunctioning.
