New Product Release: CONPROSYS™ nano Series
EtherCAT Communication DC Synchronization I/O Module Released

  • Product & Service

Africa、Asia、Europe、Japan、Middle East、North America、Oceania、Latin America

CONTEC Co., Ltd. has launched seven new I/O modules in the CONPROSYS™ nano series. The new products are expansion I/O modules that add digital I/O, analog I/O, and counter input functions, and can be installed in compatible units for use as remote I/O over EtherCAT, Modbus, or USB.

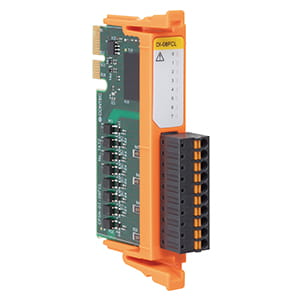

CPSN-DI-08FCL CPSN-DI-08FCL

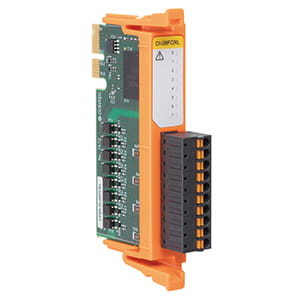

CPSN-DI-08FCRL CPSN-DI-08FCRL

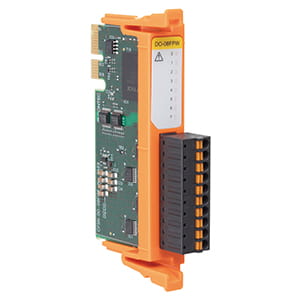

CPSN-DO-08FPW CPSN-DO-08FPW

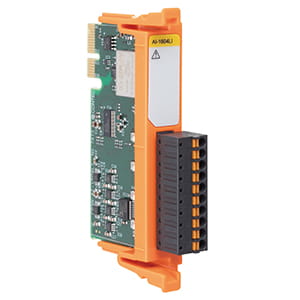

CPSN-AI-1604LI CPSN-AI-1604LI

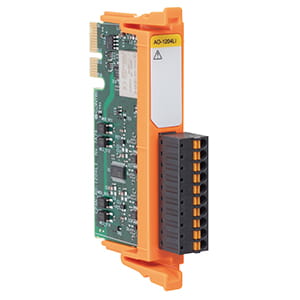

CPSN-AO-1204LI CPSN-AO-1204LI

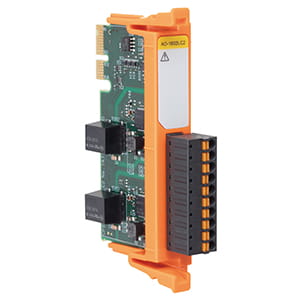

CPSN-AO-1602LC2 CPSN-AO-1602LC2

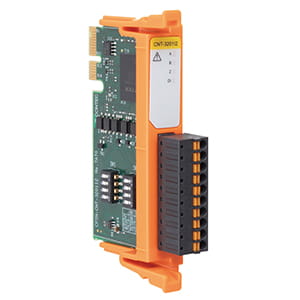

CPSN-CNT-3201I2 CPSN-CNT-3201I2

Model Product Name
CPSN-DI-08FCL nano Series Digital Input (8ch, Sink, DC Synchronization)
CPSN-DI-08FCRL nano Series Digital Inputs (8ch, Source, DC Synchronization)
CPSN-DO-08FPW nano Series Digital Outputs (8ch, Sink, DC Synchronization)
CPSN-AI-1604LI nano Series Analog Input (4ch, 16bit)
CPSN-AO-1204LI nano Series Analog Outputs (4ch, 12bit, DC Synchronization)
CPSN-AO-1602LC2 nano Series Analog Output (2ch, 16bit, DC Synchronization)
CPSN-CNT-3201I2 nano Series Counter Input (1ch, 32bit, 500KHz, DC Synchronization)

Main Features

  • Supports EtherCAT DC (Distributed Clocks) synchronization(except CPSN-AI-1604LI)

    When an EtherCAT-compatible remote I/O coupler unit is installed, it supports DC (Distributed Clocks) synchronous control function. In line with the DC synchronization trigger installed on the EtherCAT sub-device, the timing of the entire system is controlled and measured. The DC synchronization error between sub-devices is kept within 1 microsecond.

Distributed Clocks
Model Key Features EtherCAT
Communication
DC synchronization
CPSN-DI-08FCL
CPSN-DI-08FCRL 		- Optocoupler isolated input with response speed within 1 micro sec
- All input signals can be used as upcounters
- Equipped with digital filter function 		Yes
CPSN-DO-08FPW - Digital isolator isolation output with response time within 1 micro sec
- Equipped with a PWM output function that can output pulses of any period * 		Yes
CPSN-AI-1604LI - Bus-isolated analog voltage input, analog current input No
CPSN-AO-1204LI - Bus-isolated analog voltage output, analog current output Yes
CPSN-AO-1602LC2 - Channel-to-channel isolated analog voltage output, analog current output
- Successor to CPSN-AO-1602LC 		Yes
CPSN-CNT-3201I2 - 1 channel of 32-bit up-down counter
- Successor to CPSN-CNT-3201I 		Yes
  • *
    Please refer to the software manual of each compatible unit for details on function availability.

Compatible Units

  Model Features
EtherCAT compatible
Remote I/O Coupler Unit 		CPSN-EOB471EC-41*1 EtherCAT Sub-Devices
Slots for 4× I/O modules
CPSN-EOB471EC-81*1 EtherCAT Sub-Devices
Slots for 8× I/O modules
Remote I/O Coupler Unit CPSN-MCB271-S1-041*1 1× LAN, 1× RS-232C
Slots for 4× I/O modules
CPSN-MCB271-1-041*1 2× LAN
Slots for 4× I/O modules
CPSN-MCB271-1-081*1 2× LAN
Slots for 8× I/O modules
Programmable
Remote I/O Coupler Unit 		CPSN-PCB271-S1-041*2 IEC 61131-3 compliant programming
Slots for 4× I/O modules
Modular USB I/O Unit CC-USB271-CPSN4*1 USB Type-C port
Slots for 4× I/O modules
  • *1
    Support for the CPSN-CNT-3201I2 module is scheduled for mid-April.
  • *2
    Support for new products on the CPSN-PCB271-S1-041 unit is currently under preparation and will be provided sequentially.
