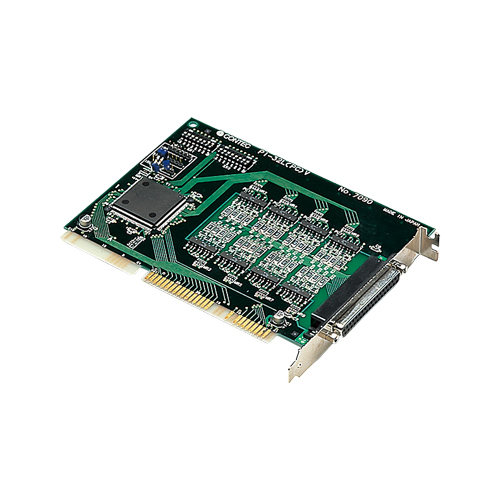

PI-32L(PC)V Digital input ISA card 32ch (isolated 12 - 24VDC)

  • Discontinued
  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • End of Repair Service: 2019/06/28

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Noise-protection nature is improving by Opto-isolated input and output.
  • Four groups and the digital current source type signal of 32 points can be inputted by making eight points into one group.
  • Simultaneous assignment of a maximum of 2 levels can do two of 32 input signals as an interruption input.
  • The power supply for a photo-coupler drive is built in, and a built-in power supply or an external power supply can be chosen.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model Definition
Digital input PCI card 32ch (isolated 12 - 24VDC)
PI-32L(PCI)H
Functions and the connector are compatible but the bus interface is different. Please refer the manual for details.

Ordering Information

Model Description / Certification
PI-32L(PC)V Digital input ISA card 32ch (isolated 12 - 24VDC)
  • CE marking

Options

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

Item Item Name
DTP-3A Screw Terminal (M3 x 37)
DTP-4A Screw Terminal (M2.6 x 37)
EPD-37 Screw Terminal (M3.5 x 37)

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(98/PC) Windows version Digital I/O Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
