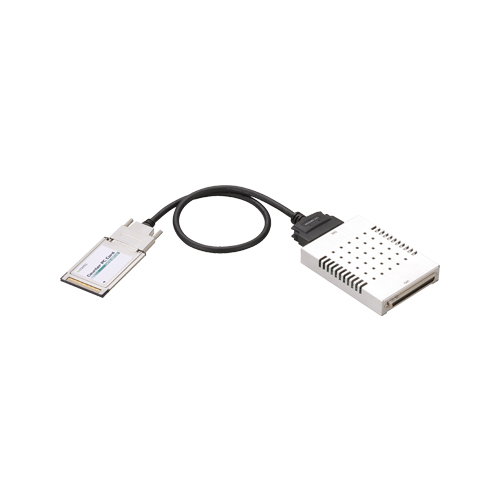

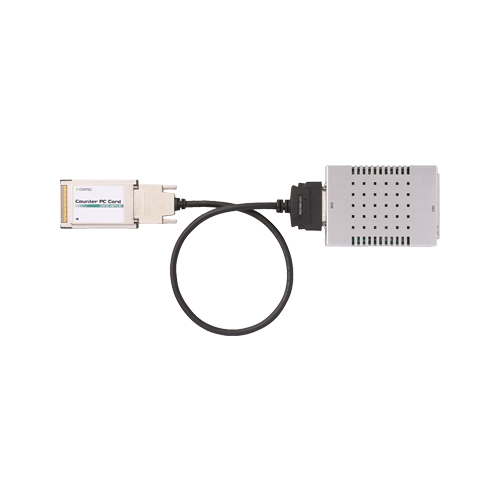

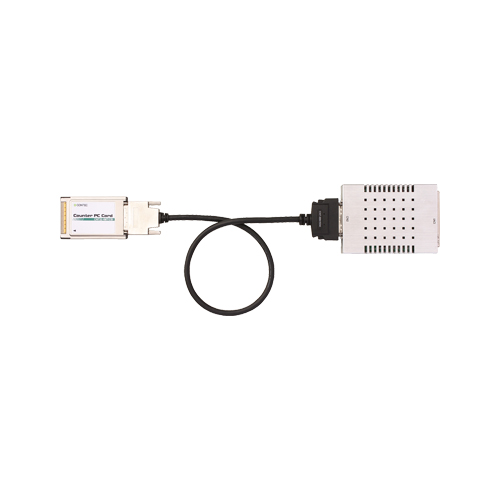

CNT32-4MT(CB) Counter CardBus PC card 4ch (32bit Up/Down count 10MHz) / Incremental encoder interface

  • Discontinued
  • Standard Warranty3 yrs
  • End of Repair Service: 2018/08/31

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • *
    For details about an extended warranty, please contact us.

Ordering Information

Replacement Product

Model Definition
Counter USB I/O unit 2ch (24bit Up/Down count 500kHz) / Incremental encoder interface / Isolated
CNT24-2(USB)GY
Bus interface is different. The input and output specifications and the connector are not compatible. Please refer the user manual for details.

Ordering Information

Model Description / Certification
CNT32-4MT(CB) Counter CardBus PC card 4ch (32bit Up/Down count 10MHz) / Incremental encoder interface

Options

Expansion Accessory Module

Item Item Name
CTP-4D Termination Panel with Differential Receivers for Counter Input

Cable

Item Item Name
CNT-68M/50M Shield Cable for Counter Input Card for CardBus
PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

Item Item Name
EPD-50A Screw Terminal (M3 x 50)
EPD-68A Screw Terminal (M3 x 68)

Software Development Kit

Item Item Name
API-CNT(98/PC) Windows version Counter driver
API-CNT(WDM) Windows Driver for Counter Input Driver
API-TIMER(W32) Timer Driver
IO-LIB General I/O Driver
