AD12-64(PCI) Analog Input PCI Card / 64ch(12bit 100ks/s)

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

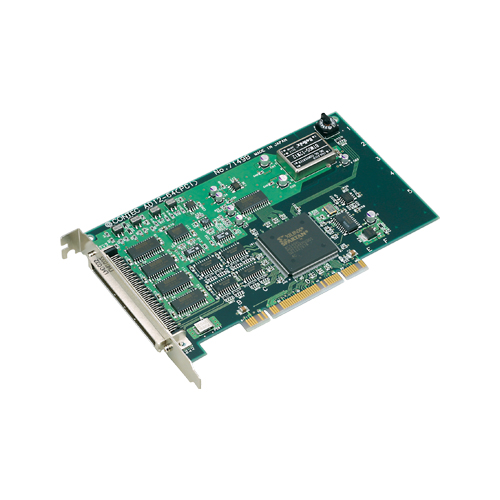

AD12-64(PCI) are PCI-compliant interface boards that convert analog input signals to digital equivalents (performing analog- to-digital conversion). AD12-64(PCI) can perform A-D conversion at a conversion speed of 10µsec [100KSPS] per channel and a resolution of 12bit. Windows/Linux device driver is supported with this product.

• Multi-channel analog input

  • < AD12-64(PCI) > can perform an analog input of single-ended input 64 channels and differential input 32 channels. Selection of single-ended input and differential input can be set up by the device driver function.
• Input range setup by device driver function

  • Input range can be selected for each channel from the following ranges and can be set up by the device driver function. ±10V, ±5V, ±2.5V, ±1.25V, 0 - +10V, 0 - +5V, 0 - +2.5V, 0 - +1.25V
• Sampling control function

  • The board can perform sampling either at arbitrary timings under control of software or periodically in synchronization with a sampling clock signal. The sampling clock signal can be selected between the internal one based on the on-board clock generator and the external one using a digital signal input from an external source.
• Digital input/output function

  • This product has four digital input and four digital output pins for TTLlevel signals, allowing an external device to be monitored and controlled.
• Optional units

  • Using optional units facilitates connections.
• Windows/Linux support device driver

  • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
