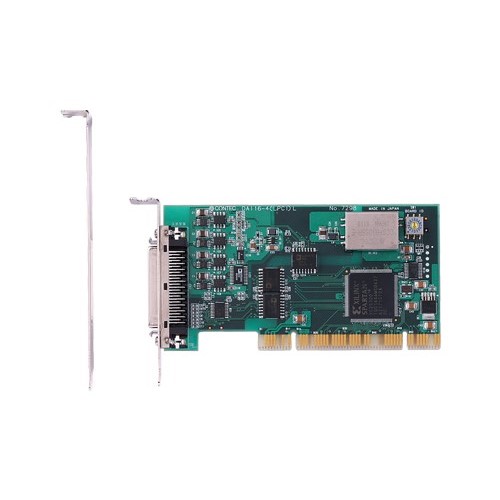

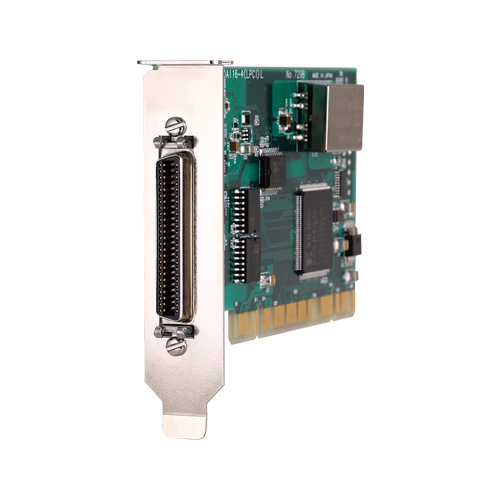

DAI16-4(LPCI)L Analog Output Low Profile PCI Card / 4ch AO (16bit 100ks/s) / 1ch Counter / Bus Isolation - Multifunction DAQ L Series

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a PCI bus compatible interface board with high-precision analog output(16-bit, 4 ch), digital input and output channels (4 channels each), and a 32-bit counter(1 channel). Noise-resistant characteristic is improved by bus isolation. Windows Driver Library API-PAC(W32) /Linux driver API-AIO(LNX) is Bundled. With plug-ins for the dedicated libraries, the board also supports MATLAB and LabVIEW.

• Rich set of basic functions

  • Compact system providing high-precision bus isolation analog outputs. DAI16-4(LPCI)L has control signals (TTL level 3 points) for analog output (16bits, 4ch). Digital inputs (TTL level four points), digital outputs (TTL level four points), and a counter (32-bit, TTL level one point) are also equiped.
• Isolation from external devices

  • Noise immunity is enhanced by isolating the PC and external analog I/O circuits with digital isolators.
• Substantial control functions

  • Capable of analog input/output in either time-based mode or external-signal synchronous mode.
• Filter function facilitating external signal connection

  • Digital filters provided for external control analog I/O signals, preventing chattering.
• Buffer memory

  • The analog outputs each have their own buffer memory. You can also perform analog output in the background, independent from software or the condition of PC.
• Software-based calibration

  • Setting and calibrating the analog output can be performed completely by software. No tricky jumper settings are required. You can also set your own calibration data in place of the default data set at the factory and use different calibration data depending on the operating conditions.
