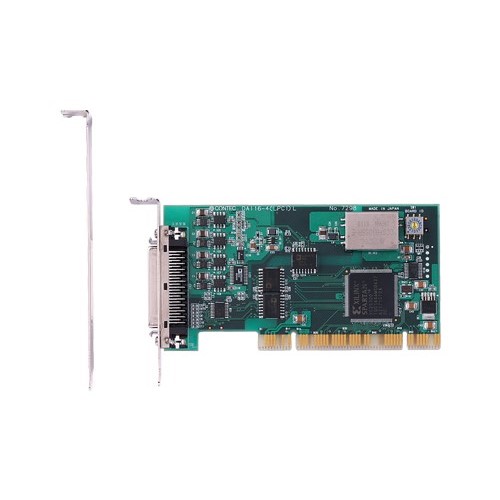

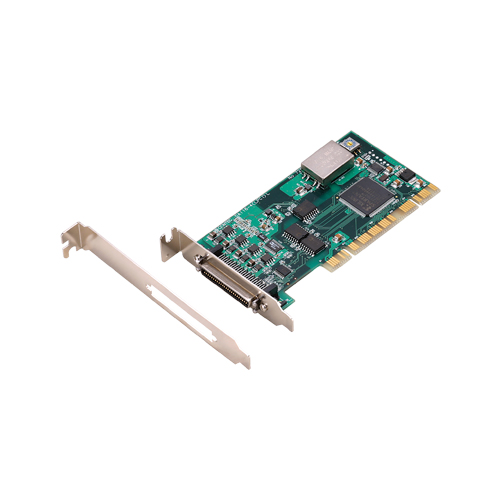

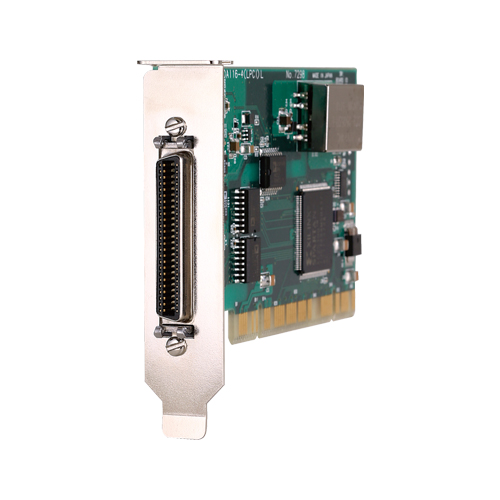

DAI16-4(LPCI)L Analog Output Low Profile PCI Card / 4ch AO (16bit 100ks/s) / 1ch Counter / Bus Isolation - Multifunction DAQ L Series

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • Rich set of basic functions
  • Isolation from external devices
  • Substantial control functions
  • Filter function facilitating external signal connection
  • Buffer memory
  • Software-based calibration
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
DAI16-4(LPCI)L Analog Output Low Profile PCI Card / 4ch AO (16bit 100ks/s) / 1ch Counter / Bus Isolation - Multifunction DAQ L Series
  • CE marking

Options

Cable

Item Item Name
PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors

Terminal

Item Item Name
ATP-8L BNC connectors for Analog I/O Board
EPD-50A Screw Terminal (M3 x 50)

Expansion Accessory Module

Item Item Name
ATBA-16L Buffer Amplifier Function Extension Box for analog input board
ATBA-8L Buffer Amplifier Function Extension Box for analog input board

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
ACX-PAC(W32) Express Edition ActiveX Component for Measurement System
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

Item Item Name
ML-DAQ MATLAB compliant Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
