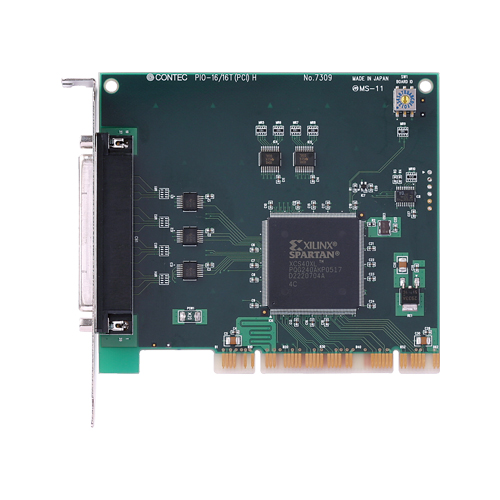

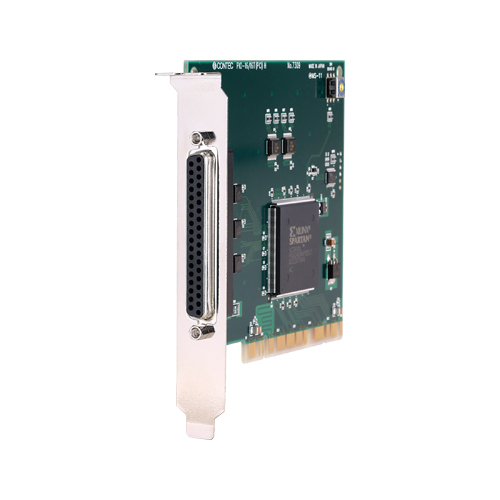

PIO-16/16T(PCI)H Digital I/O PCI card 16ch/16ch (non-isolated 5VDC-TTL)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Unisolated TTL level input, unisolated open-collector output
  • You can use all of the input signals as interrupt request signals
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering
  • Windows/Linux compatible driver libraries are attached
  • Functions and connectors are compatible with PCI compatible board PIO-16/16T(PCI)
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
PIO-16/16T(PCI)H Digital I/O PCI card 16ch/16ch (non-isolated 5VDC-TTL)
  • CE marking
  • VCCI

Options

Device Drivers

Item Item Name
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Development Support Tools

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library

Expansion Accessory Module

Item Item Name
CM-32L Signal monitor Accessory for Digital I/O

Cable

Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
