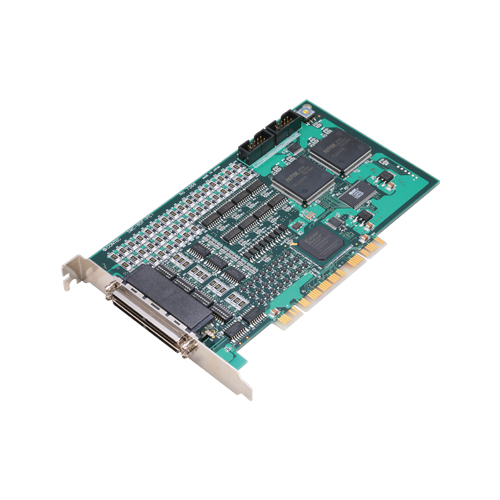

SMC-8DF-PCI 8 axes high-speed line driver output motion control board for PCI(high-performance version)

Discontinued

Standard Warranty3 yrs
Extended WarrantyAvailable

End of Repair Service: 2021/12/24

Check a compatible replacement

* The end of repair date may change depending on the situation.

Capable of multi-axis independent control and pulse
Capable of various control operations such as positioning,linear/circular interpolation, frame continuous operations,synchronization control, and so on
Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit.
Capable of storing positioning information up to 1024 frames for each axis and control without extra CPU load.

*
For details about an extended warranty, please contact us.

Supported OS

Specifications

Add-on Module

Series
Bus Specification	PCI
Size	Short Size
Used Connector	2x 0.8mm-pitch 100-pin (Female)

Motion Control

Number of Channels	8-ch
Pulse Rate	0.1 ~ 6.5Mpps

Counter

Number of Channels	8-ch
Counting System	28-bit Up/Down count
Response speed	5MHz [differential]; 3MHz [TTL]; 1MHz [open collector output]

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit)

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit)

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
