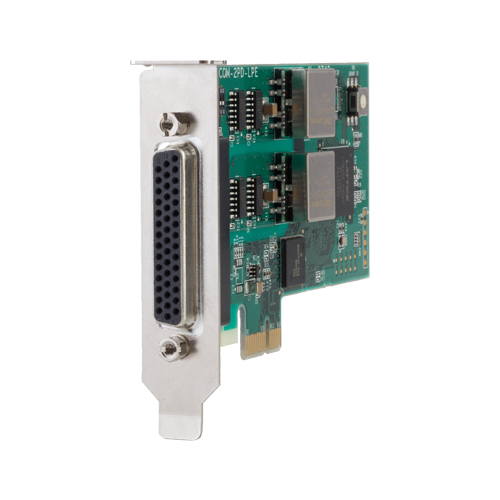

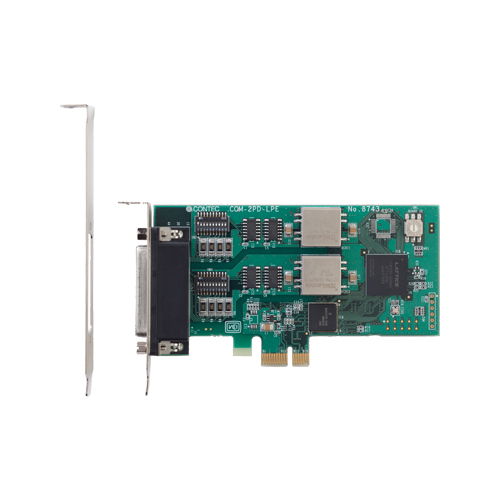

COM-2PD-LPE RS-422A/485 2ch Serial I/O Board with Isolation for PCI Express Low Profile

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Max. 921,600bps RS-422A/485 Serial Communication
  • Possibly used as Windows-standard COM ports, using the bundled driver library
  • Isolation between PCs, surge protection for all signal lines
  • Max. 16 boards can be installed as configured in the range COM1 - COM256.
  • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive.
  • Support for Low Profile size slot / standard size slot
  • *
    For details about an extended warranty, please contact us.

Specifications

Add-on module

Bus Specification PCI Express
Size Low Profile
Used Connector D-SUB 44-pin (Female)

Serial comm.

Number of Channels 2x RS-422A/485 [ASYNC]
Transmission Speed 30 ~ 921,600bps
Isolation Property Isolated & Surge protection
Transmission Method RS-422A/485 [Asynchronous]
