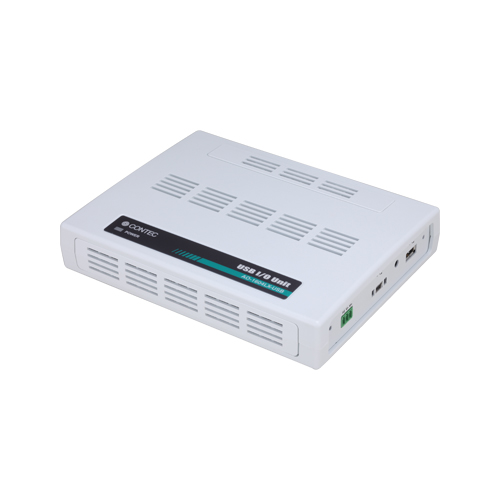

AO-1604LX-USB Analog Output USB I/O Unit / 4ch AO (16bit 100ks/s) / 1ch Counter - Multifunction DAQ L Series

Standard Warranty1 yr
Extended WarrantyAvailable

Multi-function
Buffer memory
Filter function for easy connection of external signals
Compatible with PCI / PCI Express bus board in it's design. Common connector shape and pin assignment with PCI / PCI Express bus board
Compatible to USB1.1/USB2.0
Windows compatible driver libraries are attached.

*
For details about an extended warranty, please contact us.

Supported OS

Specifications

Add-on Module

Series	Analog L(Low-cost&Multi-function); USB X(Mass connector)
Bus Specification	USB
Size	X Type
Used Connector	Miniature ribbon 50-pin

Analog I/O

Input Channels	-
Input Range	-
ADC Resolution	-
Sampling Rate	-
Input Buffer Memory	-
Output Channels	4-ch
Output Range	±10V
DAC Resolution	16-bit
Update rate	10μsec (max.)
Output Buffer Memory	1k Word

Digital I/O

Input Channels	4-ch
Output Channels	4-ch
Bi-directional I/O Channels	-
Response Time (Input)	200nsec (max.)
Response Time (Output)	200nsec (max.)
Operating Voltage (Input)	3.3VDC-LVTTL
Operating Voltage (Output)	3.3VDC-LVTTL
Input Circuit	Non-isolated LVTTL level input (Positive logic)
Output Circuit	Non-isolatedLVTTL level output (Positive logic)
Built-in Power Supply	-

Counter

Number of Channels	1-ch
Counting System	32-bit Up count
Response speed	10MHz

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
