BX-320 Box Computer BX-300 - Fanless Embedded PC / DIN Rail Mountable / F&eIT Bus / PCIe Bus / Atom E3845 (BayTrail SoC) / DC Power Supply

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a small, fanless PC for embedding with a palm-size body that can be mounted on a 35mm DIN rail. This product is the successor to the previous BX-300 microcontroller products and it meets the needs of replacing the BX-300 in systems. The exterior of this product has the same dimensions.

• Contributes to reducing running costs and energy efficiency

  • While inheriting the basic functionality of the previous BX-300 Series, this product achieves further decreases in power usage and increases in speed while maintaining sufficient performance by employing a low power platform featuring the Intel? Atom? Processor E3845 for the CPU.
• Compact design

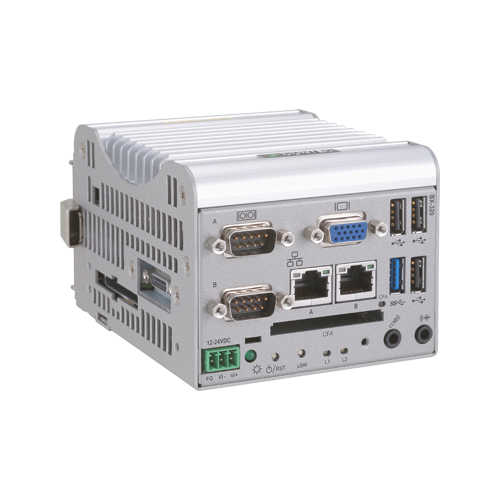

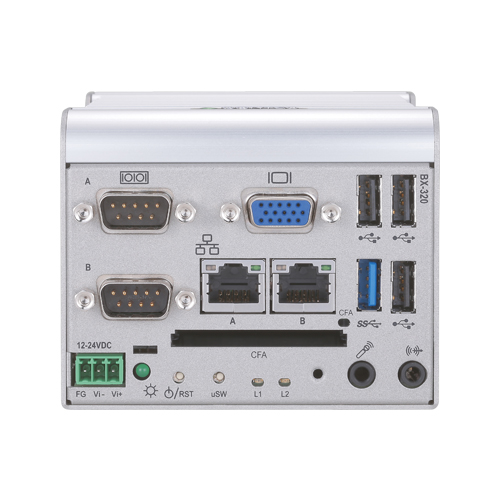

  • The small chassis (94.0 (W) x 120.0 (D) x 74.7 (H)) is equipped with a variety of interfaces including VGA, USB3.0 x 1, USB 2.0 x 3, RS-232C x 2, LAN x 2 (1000BASE-T, 100BASE-TX), Audio, and the F&eIT I/F (for F&eIT Series device modules). This product is also equipped with a PCIe connector that can be connected to an external expansion chassis. This product has the same dimensions as the previous BX-300 Series products, so it can be swapped into existing systems.
• Fanless design reduces maintenance and inspection work

  • This product features a completely spindle-free design that eliminates the CPU fan and uses a CFast card for storage. The use of components that deteriorate with age has been held down as much as possible, which greatly reduces the burden of maintenance and inspection work.
• Remote power management functions that save operational labor

  • This product supports Wake On LAN to externally start the PC via the network and Power On by Ring to start the PC by the modem receiving a call. This makes it capable of providing large operational labor savings.
• Usable as a controller for F&eIT Series measurement, control, and communication devices^∗

  • This product can be used as a controller for F&eIT Series measurement, control, and communication devices. Device modules including digital I/O, analog I/O, and serial communication can be used as measurement, control, and communication devices.
    • ∗
      Windows Embedded Standard 7 32bit only
• Expandable with PCI boards and/or PCI Express boards

  • With a single separately sold cable, this product can connect to a PCI Express Cable expansion chassis which enables expansion by PCI/PCI Express boards.
