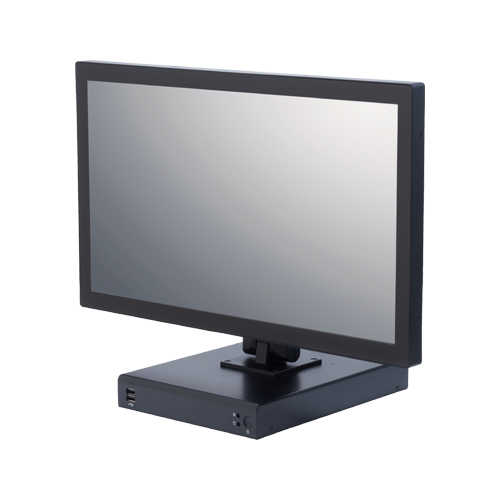

SPT-200A-22TP STAND-PC SPT-200A - All-in-One PC / 21.5-inch IPS LCD with PCAP 10 points touch panel / Core i (Coffee Lake) / with AC Adapter

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is an “All-in-One” PC with an integrated high-performance touch screen. 21.5-inch size of the display monitor is pre-installed, and various extendable interfaces such as HDMI, DisplayPort,1000BASE-T, Wireless LAN(optional), USB3.0, Serial, and Audio are provided.

• Shipped to your door already assembled as an “All-in-One” PC

  • Ships with the display, stand, and PC unit pre-assembled. Just turn on the power to get started.
• IP54-compliant industrial touch-panel display

  • Features an industrial IPS touch-panel display with a highly visible wide-viewing angle. It features touch operations similar to that of tablets or smartphones with 10-point capacitive multi-touch capabilities. The front of the display features an IP54-compliant drip-proof/dust-proof design.
• PC unit installed to the base for a stable structure with a low center of gravity

  • CONTEC has developed a new display-stand shaped PC enclosure. The PC unit is installed to the base, creating a stable, topple-resistant structure with a low center of gravity.
• New enclosure structure for high-performance CPU

  • Heat pipes and a thin CPU fan are employed to enable a high-performance CPU to be installed within a limited space. The duct structure cooling mechanism which is separated from the airflow inside the PC prevents dust and other foreign matter from being sucked into the PC enclosure. A clamshell opening/closing mechanism has been adopted to facilitate access inside the PC. This enables maintenance and the adding of memory to be performed easily even with the display installed.
• Reduced operating costs thanks to a long-term, stable supply

  • The combination of a CPU designed for use in embedded devices and an industrial-use display enables a long-term, stable supply to be achieved. These products free our customers from having to deal with operation verifications and device design changes that occur every time PC models are changed, thus reducing operation costs spent for development and verification.
• Pre-installed with Windows 10 IoT Enterprise—the OS for the latest in embedded devices

  • Comes pre-installed with Windows 10 IoT Enterprise 2019 LTSC (64-bit) that supports English, Japanese, Chinese, and Korean. Unlike normal versions of Windows 10, this guarantees long-term availability for the same specifications. Also, the added Write Filter function enables read-only system operation to be performed.
