New Product Release - All-in-One box of IoT device, Power supply and Circuit breaker New Product Release : An “IoT Box” That Can Be Easily Installed at Any Worksite

  • Product & Service

Africa、Asia、Europe、Japan、Middle East、North America、Oceania、Latin America

CONTEC has started receiving orders for its new “CONPROSYS™ Alpha IoT BOX” that is compact control cabinet convenient for easy installation of IoT devices in worksites from September 25, 2018.

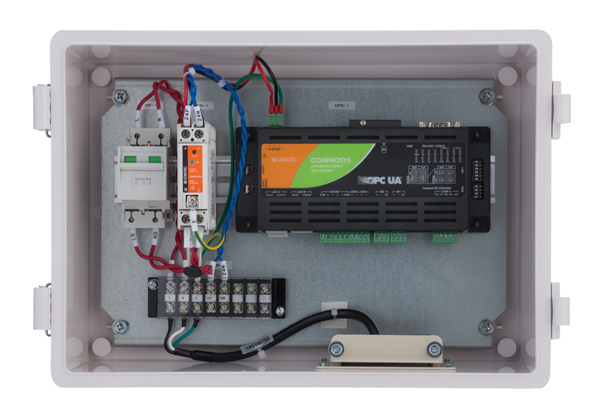

樹脂ボックス×M2M Gateway CPSA-CSU110-MG11 Plastic Cabinet with M2M Gateway, CPSA-CSU110-MG11

The new “IoT BOX” is an extremely useful product that comes with all the customer-specified equipment necessary for data collection (IoT device, power supply, circuit breaker, communication antenna, etc.) pre-installed and pre-wired in a cabinet.
This product is designed for customers who want to save time selecting, procuring and installing devices and is also the optimal solution for customers in the communication or cloud software development fields who may be unsure about device selection.

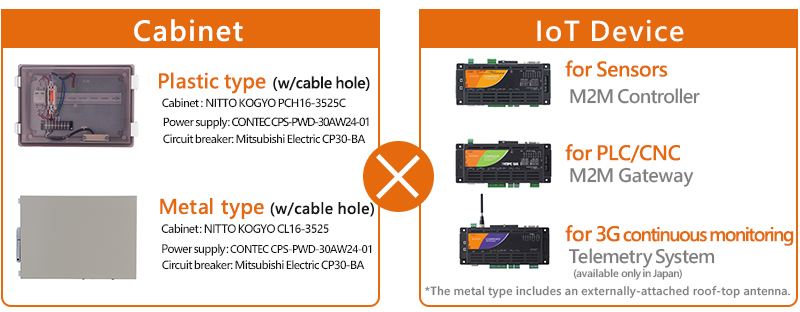

収納ボックスとlot機器の例

IoT Device Specifications

M2M Gateway

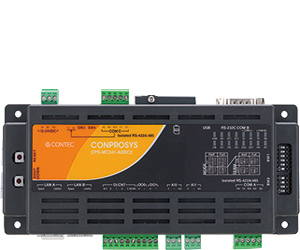

CPS-MC341-ADSC2-111の画像

Standard model featuring rich I/O interfaces and multiple functions
M2M Gateway

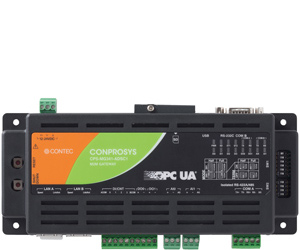

CPS-MG341-ADSC1-931の画像

Ideal model for Smart factory. Equipped with PLC communication function from multiple vendors and OPC UA server.
Telemetry System

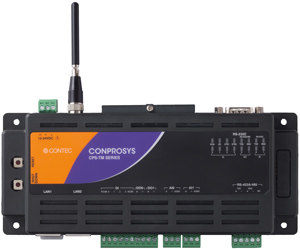

CPS-TM341GMB-ADSC1-931の画像

Programless model. Only easy setting on Web browser enables remote monitoring. 3G available.　※7
Model
Interface
LAN
2ch2ch 　※42ch 　※4
SD card slot
1 slot1 slot1 slot
SIM slot
--1 slot(Standard SIM)　※1
USB
1ch1ch1ch
Digital input
4ch　※24ch　※24ch　※2
Digital output
2ch2ch2ch
Analog input (current)
2ch2ch2ch
Counter
2ch　※32ch　※32ch　※3
RS-422A/485
2ch1ch1ch
RS-232C
1ch1ch1ch
Connectivity to upper network
3G(UMTS)
--◯
https data transmission
◯◯◯
OPC UA Server
-◯-
Modbus Slave
◯◯-
Connectivity to lower network
Modbus Master
-◯◯
PLC Master
-◯◯　※6
CNC communication
-◯-
MTConnect
-◯-
Screen creating tool
CONPROSYS HMI
◯◯◯
Programming
CONPROSYS VTC
◯◯-
  • ※1
    SIM card is not included.
  • ※2
    Opto-isolated input (Current sink output) [Voltage input]
  • ※3
    Counter inputs share with digital inputs.
  • ※4
    The LAN ports are independent, which makes it possible to split the network segment.
  • ※5
    Opto-isolated inputs (supports both current sink output and current source output) (Switchable between No-voltage input and Voltage input)
  • ※6
    It supports Ethernet(SLMP) TCP binary of Mitsubishi MELSEC. )
  • ※7
    Telemetry system is only available in Japan market. ※Please refer to the individual page on the website for detailed specifications of each models.

How to Order

This product is BTO (Built-to-order). IoT devices (CONPROSYS™) and cabinet can be selected that suit the customer’s application and installation environment. Please contact our distributors to request an estimate for your desired selection.
