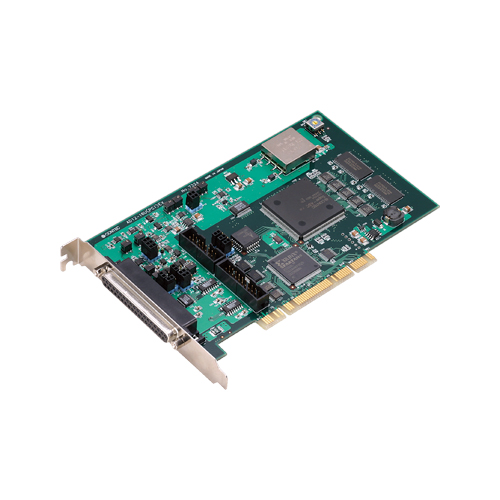

AD12-16U(PCI)EV Analog I/O PCI Card / 16ch AI(12bit 1Ms/s) / 1ch AO / 3ch Counter - Multifunction DAQ E Series

Resolution : 12-bit, combination speed : 1µsec/ch
Equipped with high-capacity buffer memory for 16M data and a variety of sampling control functions
Sixteen single-ended channels or eight differential channels (Analog input function)
Mixed on-board channels for analog output and digital I/O
Compact PCI short-size board with a wealth of advanced functions Abundant optional units
Windows/Linux compatible driver libraries are supported.
