Receiving Data - Visual Basic 2005 Serial Communication Program

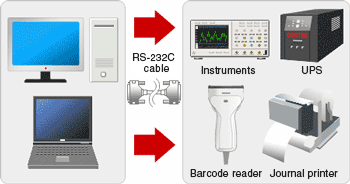

This example program uses the COM-1(USB)H RS-232C 1-port type assigned to COM1 over a USB connection and receives data sent from a device using data received event processing and reads data asynchronously from the receive buffer.For example, this method is effective for reading received data when barcode data has been read or when an instrument has finished taking a measurement.This example program uses a delegate and the Invoke method to display received data in a text box.

Used COM port COM1
Transmission rate 9600 bps
Parity setting None
Data bit length 8 bits
Stop bits 1 bit
Handshake Do not use
RTS line Enabled

Creating the form and configuring properties

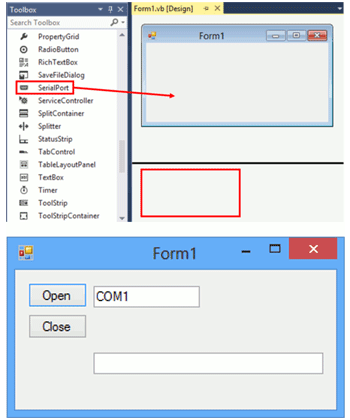

Start Visual Basic 2005, create a new project, and create a form like that shown to the left.Paste the SerialPort component on the form.Check the SerialPort component properties (communication settings such as the baud rate).

Object TextBox1 COM1
Object Button1 Connect
Object Button2 Disconnect
Object TextBox2

Multithreaded processing

  • The DataReceived event handler is called from a secondary thread.That is, the data received event processing is performed in the secondary thread.
  • Therefore, when accessing Windows.Forms UI elements (controls), you must use the Control.Invoke() method.
  • Operations on a control can be executed in the main thread by using the Invoke method.
  • Create a delegate that corresponds to the method (including operation on the control) that you want to execute in the main thread, and call the instance of that delegate as an Invoke method parameter.

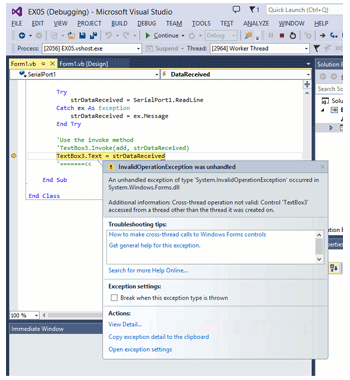

  • For example, if you attempt to display the received data in the form's text box in the data received event in the same manner as when received with the timer event, an exception error like that shown below will occur. For details on multithreaded processing, refer to the Visual Basic 2005 help.

Program code example

Add the processing for when the connect button and the disconnect button are clicked.Write the following code on Form1.vb.When you double-click each object (button, etc.), if the object is a button, the procedure to code the processing when the button is pressed will open.Write the code for the processing you want to perform here.

Private Sub Button1_Click(...  : Processing when the connect button is pressed
    Try                     ' Start of exception handling
    　If SerialPort1.IsOpen = True Then          ' Port has been opened
        MessageBox.Show("Error", MessageBoxButtons.OK, MessageBoxIcon.Error)
        Exit Sub
    　End If
        SerialPort1.PortName = TextBox1.Text    ' Stores the name of the port to open
        SerialPort1.Open()                          ' Opens the port
    Catch ex As Exception           ' Exception handling
        MessageBox.Show(ex.Message, "Error", MessageBoxButtons.OK,MessageBoxIcon.Error)
    End Try

    SerialPort1.RtsEnable = True                    ' Turn RTS ON
End Sub
Private Sub Button2_Click(...  : Processing when the disconnect button is pressed
    If SerialPort1.IsOpen = True Then        ' Port has been opened
       SerialPort1.Close()                           ' Closes the port
    End If
End Sub
Declare a delegate
    Delegate Sub DataDelegate(ByVal sdata As String)

Define the method (function) that will be called by the Invoke method
    Private Sub PrintData(ByVal sdata As String)
     TextBox2.Text = sdata
    End Sub

Private Sub SerialPort1_DataReceived(ByVal...  : Code the processing when the data received event occurs
    Dim ReceivedData As String = " "        ' Declare variable for received data
    Try
        ReceivedData = SerialPort1.ReadLine　    ' Receive the data
    Catch ex As Exception
        ReceivedData = ex.Message       ' Exception handling
    End Try
' Declare delegate to method to execute by Invoke method and display received data
    Dim adre As New DataDelegate(AddressOf PrintData)
    Me.Invoke(adre, ReceivedData)

End Sub
