Software Development Kit

These Software Development Kits are available free-of-charge for using a variety of CONPROSYS controllers.

CONPROSYS Linux SDK

This software development tool helps users to write their own programs when they use a CONPROSYS hardware device as a Linux controller.
There are two types of SDKs a cross development environment that uses a Ubuntu PC connected by a serial communication port, and a self-development environment that uses CONPROSYS hardware.

Cooperation with Partner Solutions

Connection with Microsoft Azure

Connection with Microsoft Azure Contec is a Microsoft Azure Certified for IoT Partner. The CPS-MC341-ADSC2 uses CONPROSYS Linux SDK received the "Azure Certified for IoT" certification which means this controller has passed the Azure IoT Hub connection test.

Microsoft Azure Logo

Connections with FUJITSU Cloud Service IoT Platform

The CPS-MC series and the CPS-MCS series using Linux SDK are certified devices of the IoT Platform Ready Program.

Connections with Saison Information System HULFT IoT

The CPS-MC series and the CPS-MCS series using Linux SDK are "HULFT IoT Ready" certified.

Cross-Build Version

Cross-build version configuration

Operating Environment

Ver.2.1.0 Ver.1.4.3 Memo
Host PC OS Ubuntu 20.04LTS Ubuntu 14.04LTS / Ubuntu 16.04LTS
kernel version 4.19 3.2
Expansion SDK Non-supported Supported Build a custom program for standard FW

Supported Devices

Ver.2.1.0 Ver.1.4.3
M2M controller series CPS-MC341-ADSC series (Including 3G model)
CPS-MCS341-DS series (Including 3G/LTE model)		 CPS-MC341-ADSC series (Including 3G model)
CPS-MC341-DS series
CPS-MC341-A1
CPS-MC341-DS11
CPS-MCS341-DS series (Including 3G/LTE model）
M2M Gateway series CPS-MG341-ADSC series (Including 3G/LTE model） CPS-MG341-ADSC series (Including 3G/LTE model）
  • *
    For the deitals, please see its datasheets.

Download（Ver.2.1.0）

  • *
    For downloading, registration to myCONTEC membership will be required. Click here for new registration.

Download（Ver.1.4.3）

  • *
    For downloading, registration to myCONTEC membership will be required. Click here for new registration.

Self Build Version

CONPROSYS Linux contains the Web Server function on Self-build edition SDK, network setting and system information can be monitored by accessing directly the IP address of CONPROSYS from Web browser on PC.

Self build version configuration

Operating Environment

Ver.2.1.0 Ver.1.4.3 Memo
Supported OS Ubuntu 20.04LTS Ubuntu 14.04LTS
kernel version 4.19 3.2
Expansion SDK Non-supported Supported Build a custom program for standard FW

Supported Devices

Ver.2.1.0 Ver.1.4.3
M2M controller series CPS-MC341-ADSC series (Including 3G model)
CPS-MCS341-DS series (Including 3G/LTE model)		 CPS-MC341-ADSC series (Including 3G model)
CPS-MC341-DS series
CPS-MC341-A1
CPS-MC341-DS11
CPS-MCS341-DS series (Including 3G/LTE model）
M2M Gateway series CPS-MG341-ADSC series (Including 3G/LTE model） CPS-MG341-ADSC series (Including 3G/LTE model）
  • *
    For the deitals, please see its datasheets.

Download（Ver.2.1.0）

  • *
    Please write to a user prepared SD card.
  • *
    For downloading, registration to myCONTEC membership will be required. Click here for new registration.

Download（Ver.1.4.3）

  • *
    Please write to a user prepared SD card.
  • *
    For downloading, registration to myCONTEC membership will be required. Click here for new registration.

Web Setup Screen Images

CONPROSYS Extended SDK

CONPROSYS Extended SDK is a Software development tool for programming that can add user programs built by cross development on the host PC using the Linux SDK in addition to various functions of CONPROSYS. The user program is converted to an executable file using the CONPROSYS Linux SDK cross-build version, copied to the SD card, and executed on CONPROSYS.

Features

Link with Program

It is possible to use internal variables (TAGs) from user program to link with CONPROSYS HMI or VTC. There are two types of user programs. One is to execute on booting up and anther one is to call on VTC.

Data protection by encryption

The CONPROSYS unit and the SD card have an encryption keys that is verified at startup to prevent malicious programs from being executed.

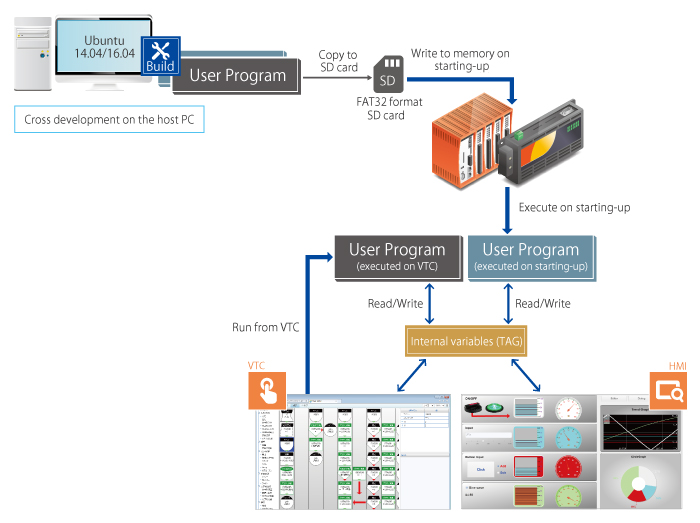

User Program Add-on Image

User Program Add-on Image

Documents

Operating Environment

Supported devices M2M Controller Series
  • CPS-MC341 series. later than Ver. 3.3.0
  • CPS-MCS341 series. later than Ver. 3.4.0
M2M Gateway Series
  • CPS-MG341 series. later than Ver. 3.3.0
CONPROSYS Linux SDK
  • CONPROSYS Linux SDK Ver. 1.4.3

Download

This SDK can be used by updating to latest firmware version.

  • *
    For downloading, registration to myCONTEC membership will be required. Click here for new registration.
M2M Controller
M2M Gateway

Option

SD card with SLC(Single Level Cell) type NAND flash memory suitable for industrial use.

Model Size
sd4gba_rgb_96dpi_500x500
SD-4GB-A
４GB

Seminar Textbook

For hands-on seminar of the CONPROSYS series [10MB]
