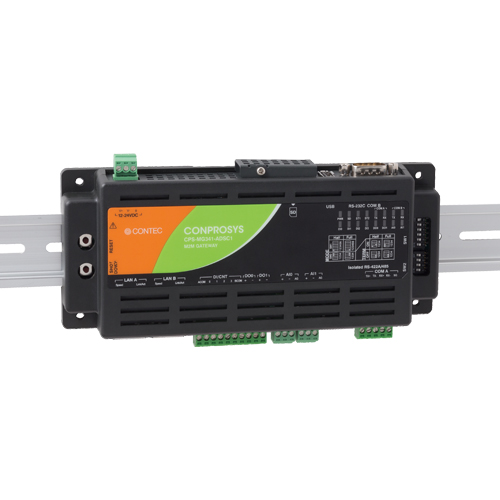

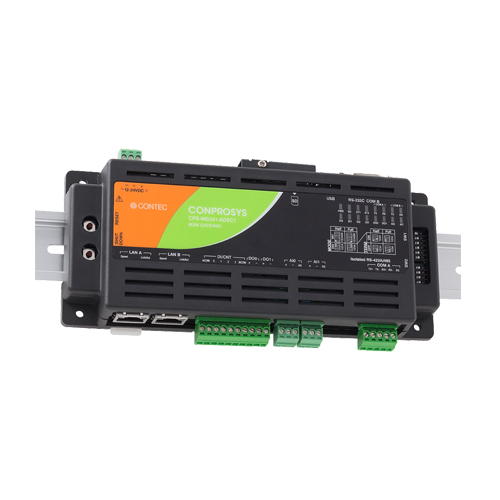

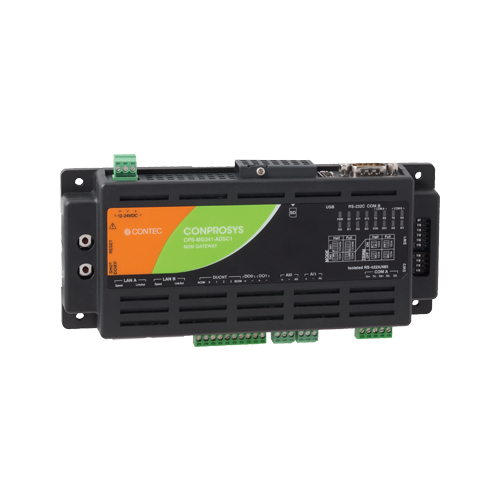

CPS-MG341-ADSC1-111 CONPROSYS M2M Gateway - Integrated Type / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a M2M controller with isolated RS-422A/485, isolated digital input/output, isolated counter input, inter-channel isolated analog input, RS-232C, and LAN interface. It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device. CPS-MG341-ADSC1-111 is the data collector "M2M Gateway" controller that supports respective PLCs as well as various Modbus devices. In the facilities with PLC controlling, data can be collected by "M2M Gateway" controller, and the facilities without PLC controlling, data can be collected by M2M controller. "M2M Gateway" can connect up to 10 Ethernet/calculating links with differing makers PLCs simultaneously. With the CONPROSYS series, data can be collected from various types of facilities and managed them all centrally. All the processes from development to operation can be performed on a web browser. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time. This product is in compliant with the following standards: CE, FCC, UL and VCCI.

• Promoting a multi-vendor system supporting a varied lineup of PLCs and Modbus devices

  • The product connects and supports every PLC and each Modbus device simultaneously.
• Connect up to 10 links and data collection from 256 group registers

  • Up to 10 Ethernet/calculating links can be connected. Data collection from 128 PLCs and 256 group registers can be carried out. Up to 10000 data mapping for Modbus is possible.
• BACnet Server & Client communication function

  • It supports both the server function that converts PLC and sensor information into BACnet communication protocol and sends it, and the client function that can monitor and control BACnet compatible devices such as air conditioners and lighting. By using the function, it is possible to pass the information from facilities and sensors that do not support BACnet to building management systems. In addition, by collecting the information from building equipment, building a simple control system and sending information on building equipment to the cloud via CONPROSYS, you can remotely monitor equipment at multiple sites.
• Web Monitoring and Web Task Script

  • The product contains a Web server (Java applet). Even with your PC located remotely, you can monitor and update I/O information through a Web browser. On the monitoring screen, you can freely lay out the standard GUI parts (graphic, slider, button, etc.). All operations including monitoring layout, making relations with I/O information, can be achieved via the Web browser. By combining icons such as arithmetic operations, conditional branching, data outputting, you can set up the executions or its processes like drawing them in the flowchart. All operation can be completed on the Web browser.
• Simple router function

  • Equipped with a simple routing function. It is possible to use a DHCP server, static routing, port routing and IP routing.
• Message communication function

  • With the RS-232C, the RS-422A/RS-485 or the Ethernet device (TCP/UDP), up to 10 links can be set to send or receive messages. Message communication can be accomplished from Web task script.
