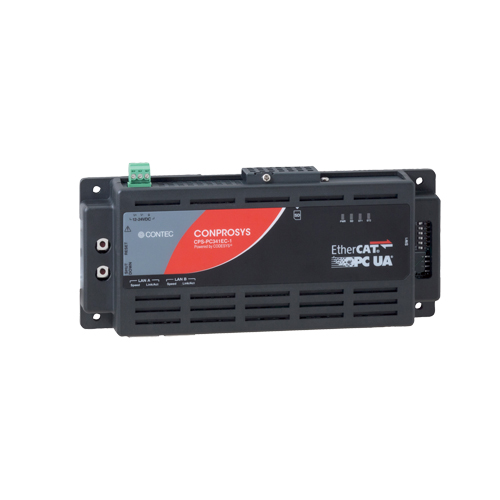

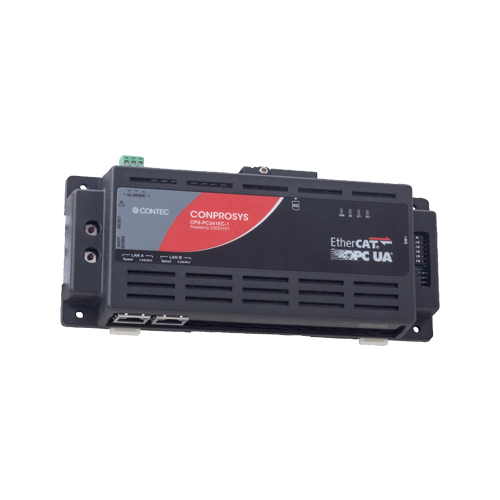

CPS-PC341EC-1-9201 CONPROSYS PAC Series - Integrated Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is an EtherCAT Master controller equipped with ARM Cortex-A8 processor (600MHz) and 512MB DDR3-SDRAM. On-board NOR-FLASH is utilized for a booting device. This product contains the CODESYS SoftPLC. You can create your own PLC program and run with the CODESYS software. CODESYS is a device- independent-PLC-programming system that is compliant with the IEC 61131-3 standard and supports all standard programming languages such as ST or LD. This product is in compliant with the following standards: CE, FCC, UL and VCCI.

• Collaborate with the CODESYS

  • CODESYS is a device-independent-PLC-programming system that is compliant with the IEC 61131-3 standard and supports all standard programming languages such as ST or LD.
• Harmonize with EtherCAT Master

  • EtherCAT is a strong, efficient real-time Ethernet field bus system with an open protocol.
• Together with OPC UA Server

  • OPC UA (Unified Architecture) is an advanced model of OPC specifications, which presents refined capability of transmitting and receiving semantic description data. OPC UA is a platform independent standard based on TCP.
• Compact Design

  • Compact design of 188.0(W) x 78.0(D) x 30.5(H), features flexibility in installation.
• Adaptable to a temperature range between -20 to 60°C

  • The product is capable of operating in the temperature between -20 to 60°C. It can be installed in the various environments.
• Capable of adapting a wide-range power (12 to 24VDC)

  • The product is capable of dealing with a wide range of power in the differing environments. Power connector also has a FG terminal.
