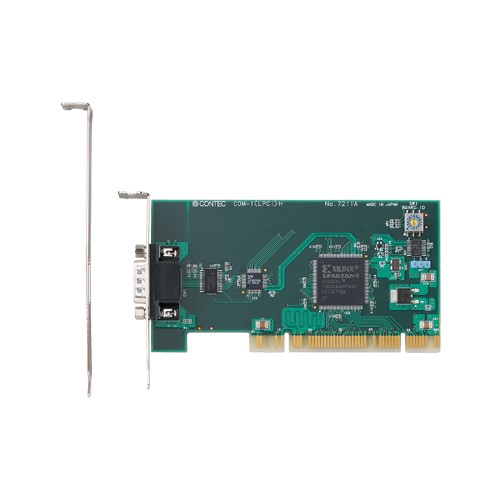

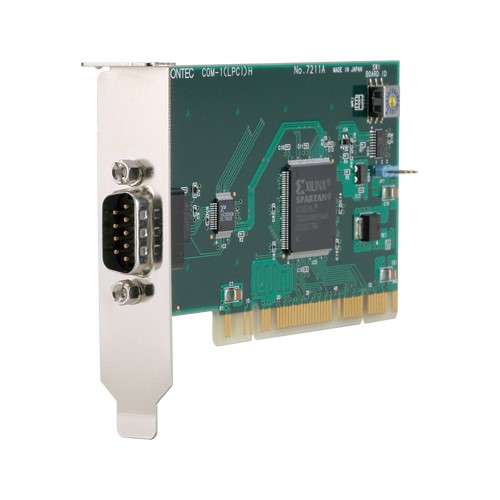

COM-1(LPCI)H Serial Communication Low Profile PCI Card RS-232C 1ch

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • High-Speed communication of a maximum of 921.6Kbps (it sets up according to a channel)
  • Optimization of transceiver timing is possible at FIFO trigger size change.
  • It recognizes as Windows and a standard COM port of Linux by the appending driver.
  • It is lineup about three models of 1, 2 and 4 channels.
  • By attached standard COM driver software [COM Setup Disk], it can be used as a COM port of Windows XP/2000/Me/98SE/98 or Linux standard. Programming in communication control (MSComm) of Win32API communication functions (CreateFile( ) and WriteFile( ) etc.) or Visual Basic is also possible.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
COM-1(LPCI)H Serial Communication Low Profile PCI Card RS-232C 1ch
  • CE marking
  • VCCI


Device Drivers

Item Item Name
API-SIO(98/PC) Serial Communication Driver
IO-LIB General I/O Driver

Development Support Tools

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development


Item Item Name
RSC-9F Cross Cable, RS-232C D-SUB9P(1.8m)
RSS-25M/9F Straight cable for Connector Conversion, RS-232C(25M -> 9F, 1.8m)
RSS-9M/F Straight Cable, RS-232C D-SUB9P(1.8m)

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
