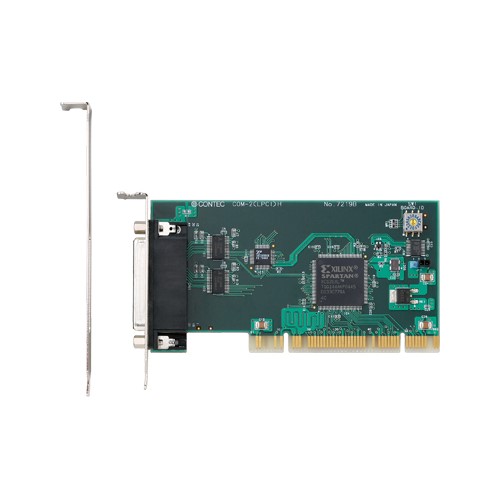

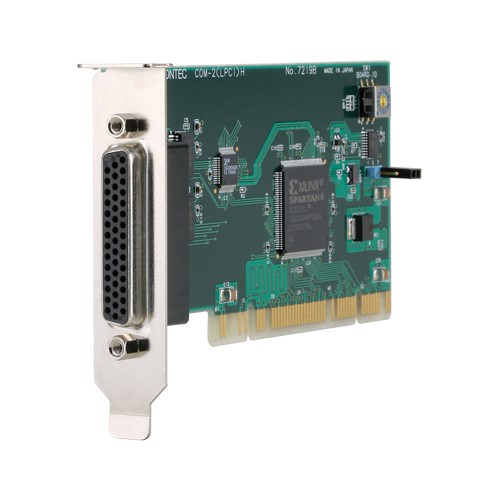

COM-2(LPCI)H Serial Communication Low Profile PCI Card RS-232C 2ch

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Max. 921,600bps RS-232C Serial Communication
  • Possibly used as Windows, Linux-standard COM ports,using the bundled driver library
  • Max. 16 boards can be installed as configured in the range COM1 - COM256
  • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive
  • Support for Low Profile size slot / standard size slot
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description / Certification
COM-2(LPCI)H Serial Communication Low Profile PCI Card RS-232C 2ch
  • CE marking

Options

Cable

Item Item Name
PCE44/9P2S Divider Shield cable, D-SUB44pin -> 9pin x2 (0.25m) for Serial I/O Board
RSC-9F Cross Cable, RS-232C D-SUB9P(1.8m)
RSS-25M/9F Straight cable for Connector Conversion, RS-232C(25M -> 9F, 1.8m)
RSS-9M/F Straight Cable, RS-232C D-SUB9P(1.8m)

Other Accessories

Item Item Name
CN5-D44M 44pin D-SUB (Male) Connector Five-piece Set

Software Development Kit

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-SIO(98/PC) Serial Communication Driver
IO-LIB General I/O Driver

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course)
