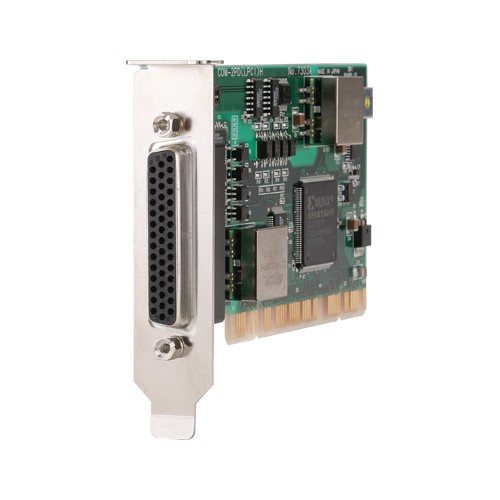

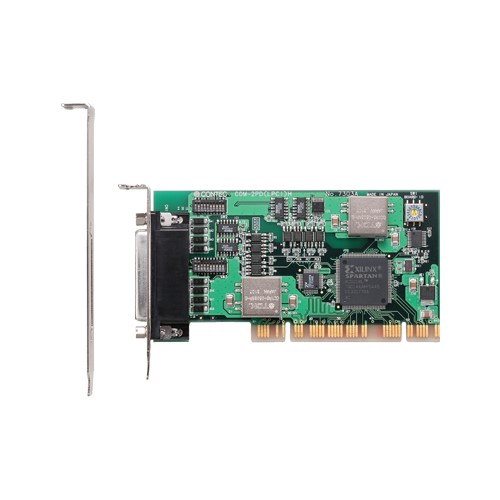

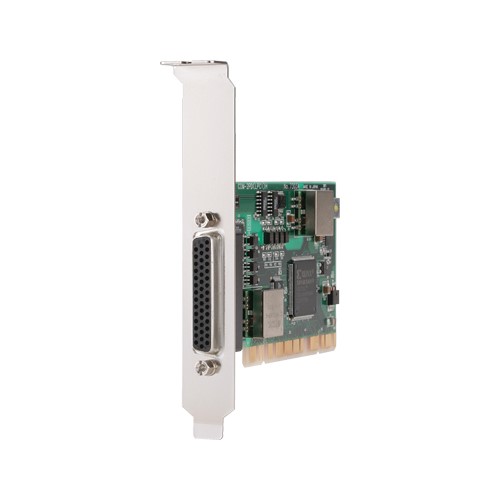

COM-2PD(LPCI)H Serial Communication Low Profile PCI Card RS-422A/485 2ch / Isolation and Surge Protection

Standard Warranty3 yrs
Extended WarrantyAvailable

Max. 921,600bps RS-422A/485 Serial Communication
Possibly used as Windows, Linux-standard COM ports,using the bundled driver library
Isolation between channels and between PCs, surge protection for all signal lines
Max. 16 cards can be installed as configured in the range COM1 - COM256

*
For details about an extended warranty, please contact us.

Supported OS

Ordering Information

Ordering Information

Model	Description	Certification
COM-2PD(LPCI)H	Serial Communication Low Profile PCI Card RS-422A/485 2ch / Isolation and Surge Protection

Options

Device Drivers

Item	Item Name
API-SIO(98/PC)	Serial Communication Driver

Development Support Tools

Item	Item Name
ACX-PAC(W32)	ActiveX components sets for measurement system development

Cable

Item	Item Name
PCE44/9P2S	Divider Shield cable, D-SUB44pin -> 9pin x2 (0.25m) for Serial I/O Card
RSC-9F	Cross Cable, RS-232C D-SUB9P(1.8m)
RSS-25M/9F	Straight cable for Connector Conversion, RS-232C(25M -> 9F, 1.8m)
RSS-9M/F	Straight Cable, RS-232C D-SUB9P(1.8m)

Other Accessories

Item	Item Name
CN5-D44M	44pin D-SUB (Male) Connector Five-piece Set

Extended Warranty Service

Item	Item Name
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
