Basic Knowledge of Display Interfaces

List of Maximum Resolutions and Maximum Number of Display Screens

Series Maximum Number of Screens Number of Ports / Maximum Resolution Notes
DisplayPort USB Type-C
DP Alt Mode		 HDMI DVI Analog RGB

Box Computers BX Series
BX-U310
 1 - - 1 port
3840×2160		 - -
BX-U200
BX-U200R 		3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 1 port (v1.2)
Dual Mode
3840×2160		 - - - A maximum of 3 displays can be connected. Because DisplayPort and USB Type-C (DP Alt Mode) support Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.

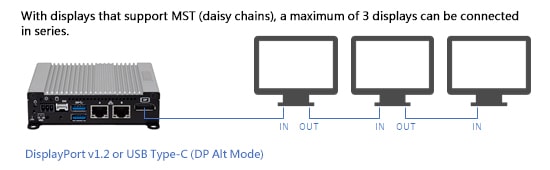

With displays that support MST (daisy chains), a maximum of 3 displays can be connected in series. Click to enlargeClick to open modal

When a MST hub is used, a maximum of 3 MST non-compatible displays can be connected. Click to enlargeClick to open modal

BX-C210-G
BX-C211-G
BX-C212-G 		3
(Expansion/Clone)		 1port(v1.2)
Dual Mode
3840×2160		 - - - - A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
CPS-BXC200 3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - - - 1 port
1920×1200		 A maximum of 3 displays can be connected. The number of displays that can be connected to Analog RGB is 1.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
BX-T310-G 3 1 port
4096×2304@60Hz		 - - - 1 port
1920×1200@60Hz
BX-T210
BX-T210R 		3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - - - 1 port
1920×1200		 A maximum of 3 displays can be connected. The number of displays that can be connected to Analog RGB is 1.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
BX-T5000-G 3
(Expansion/Clone)		 1 port (v1.4)
Dual Mode
4096×2160@60Hz		 - 1 port (v1.4)
3840×2160@30Hz		 - - A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
BX-T3020 3
(Expansion/Clone)		 1 port (v1.4)
Dual Mode
3840×2160		 - 1 port (v1.4)
3840×2160		 - - A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
BX-T3000
BX-T3000R 		3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - - - 1 port
1920×1200		 A maximum of 3 displays can be connected. The number of displays that can be connected to Analog RGB is 1.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
BX-T1000
BX-T1010
BX-T1020 		3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - - 1 port
(DVI-D)
1920×1200		 - A maximum of 3 displays can be connected. The number of displays that can be connected to DVI is 1.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
BX-S2000T
 3
(Expansion/Clone)		 1 port - 1 port - -
BX-M540 3
(Expansion/Clone)		 - 1 port USB 3.2 Gen2
Type-C [DP Alt Mode]
3840×2160		 1 port (2.0)
3840×2160		 - - A maximum of 3 displays can be connected.
Because DisplayPort and USB Type-C (DP Alt Mode) support Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
BX-M4600
 -M4600P2
 -M4600P2A
 3
(Expansion/Clone)		 1 port (1.4)
Dual Mode
4096×2160@60Hz		 - - 1 port
(DVI-I)
1920×1200@30Hz(DVI-D&VGA)		 - A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
BX-M310 3
(Expansion/Clone)		 1 port
Dual Mode
4096×2160		 - - - 1 port*
1920×1200		 A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
  • *
    When the provided DVI-analog RGB adapter is used. Operation is not guaranteed when a commercially available splitter cable is used to split DVI-I into DVI-D and Analog RGB.
BX-M3010 3
(Expansion/Clone)		 1 port
Dual Mode
4096×2304@60Hz		 - 1 port
4096×2160@30Hz		 - - A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
BX-M210 3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - - - 1 port
1920×1200		 A maximum of 3 displays can be connected. The number of displays that can be connected to Analog RGB is 1.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
BX-M2500
BX-M2510 		3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - - 1 port
(DVI-I)
1920×1200		 1 port*
1920×1080		 A maximum of 3 displays can be connected. The number of DVI and Analog RGB displays that can be connected is 1.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
  • *
    When the provided DVI-analog RGB adapter is used. Operation is not guaranteed when a commercially available splitter cable is used to split DVI-I into DVI-D and Analog RGB.
BX-S3300
BX-S3300P2 		3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - - 1 port
(DVI-I)
1920×1200		 1 port*
1920×1080		 A maximum of 3 displays can be connected. The number of DVI and Analog RGB displays that can be connected is 1.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
  • *
    When the provided DVI-analog RGB adapter is used. Operation is not guaranteed when a commercially available splitter cable is used to split DVI-I into DVI-D and Analog RGB.
BX-S3000
Discontinued
 -S3000P2
Discontinued
 -S3000P2A
Discontinued 		3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - - 1 port
(DVI-I)
1920×1200		 1 port*
1920×1080
BX-M1020
BX-M1020P2
BX-M1020P4 		3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - - 1 port
(DVI-D)
1920×1200		 - A maximum of 3 displays can be connected. The number of displays that can be connected to DVI is 1.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
BX-M1010
BX-M1010P2
BX-M1010P4 		3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - - 1 port
(DVI-D)
1920×1200		 -
BX-830 Discontinued 2
(Expansion/Clone)		 1 port (v1.1a)
1920×1200		 - - 1 port
(DVI-I)
1920×1080		 1 port*
1920×1200

1 display can be connected to DisplayPort and 1 display can be connected to DVI.

  • *
    When the provided DVI-analog RGB adapter is used. Operation is not guaranteed when a commercially available splitter cable is used to split DVI-I into DVI-D and Analog RGB.
BX-825 Discontinued 2
(Expansion/Clone)		 1 port (v1.1a)
1920×1200		 - - 1 port
(DVI-I)
1920×1080		 1 port*
1920×1200
BX-220 Discontinued 2
(Expansion/Clone)		 1 port (v1.1a)
1920×1200		 - - 1 port
(DVI-I)
1920×1080		 1 port*
1920×1200
BX-R100 Discontinued 1 1 port (v1.1a)
1920×1200		 - - - -
BX-956S Discontinued 1 - - - 1 port
(DVI-I)
1920×1080		 1 port*
1920×1200
  • *
    When the provided DVI-analog RGB adapter is used. Operation is not guaranteed when a commercially available splitter cable is used to split DVI-I into DVI-D and Analog RGB.
BX-321 Discontinued 1 - - - - 1 port
1920×1200
BX-320 Discontinued 1 - - - - 1 port
1920×1200

Box Computers EPC Series
EPC-5000A
EPC-5000B 		3
(Expansion/Clone)		 1 port (v1.4)
Dual Mode
4096×2160@60Hz		 - 1 port
4096×2160@60Hz		 - 1920×1080@60Hz A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
EPC-4000
EPC-4000P2
EPC-4000P4 		2
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - - 1 port (DVI-D)
1920×1200		 -

A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.
EPC-3010
Discontinued
 -3010(2 slots)
Discontinued
 -3010(4 slots)
Discontinued 		3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - 1 port (v1.4)
3840×2160@24Hz		 1 port (DVI-I)
1920×1080		 1 port*
1920×1080

A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.

  • *
    When the provided DVI-analog RGB adapter is used. Operation is not guaranteed when a commercially available splitter cable is used to split DVI-I into DVI-D and Analog RGB.

Edge AI Computers
DX-M2300 1 - - 1 port (v2.0)
3840×2160@60Hz		 - -
DX-U2200
DX-U2100 		1 - - 1 port (v1.4)
3840×2160@60Hz		 - -
DX-U1210
DX-U1200
DX-U1200P1
 2
(Expansion/Clone)		 1 port (v1.4)
3840×2160		 - 1 port (v2.0)
3840×2160@60Hz		 - -
DX-U1100
DX-U1100P1 		2
(Expansion/Clone)		 1 port
(eDP v1.4)
3840×2160		 - 1 port (v2.0)
3840×2160@60Hz		 - -

Digital Signage Player DS
DS-220 Discontinued 1 1 port
(v1.1a)
1920×1200		 - - 1 port (DVI-I)
1920×1080		 -

FA Computer VPC
VPC-7000 1 - - - -  1 port
1920×1200
VPC-5000 3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - 1 port(v1.4)
3840×2160@30Hz		 - 1 port
1920×1080

A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.

VPC-3200 3
(Expansion/Clone)		 1 port
Dual Mode
4096×2160@60Hz		 - 1 port
4096×2160@60Hz		 1 port (DVI-I)
1920×1200@60Hz		 1 port*
1920×1200

A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.

  • *
    When the provided DVI-analog RGB adapter is used. Operation is not guaranteed when a commercially available splitter cable is used to split DVI-I into DVI-D and Analog RGB.
VPC-3100 3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - 1 port(v1.4)
3840×2160@30Hz		 1 port (DVI-I)
1920×1200		 1 port*
1920×1200
VPC-1800 3
(Expansion/Clone)		 1 port
Dual Mode
4096×2160@60Hz		 - 1 port
4096×2160@60Hz		 1 port (DVI-I)
1920×1200		 1 port*
1920×1200
VPC-1700 3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - 1 port(v1.4)
3840×2160@30Hz		 1 port (DVI-I)
1920×1200		 1 port*
1920×1200
VPC-720 3
(Expansion/Clone)		 2 port
Dual Mode
3840×2160		 - 1 port
3840×2160@24Hz		 - -

A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.

VPC-700
Discontinued 		3
(Expansion/Clone)		 1 port (v1.2)
Dual Mode
3840×2160		 - 1 port(v1.4)
3840×2160@24Hz		 1 port (DVI-I)
1920×1200		 -

Custom Computer LPC
LPC-1800 3
(Expansion/Clone)		 1 port
3840×2160@60Hz		 - 1 port
4096×2160@60Hz		 1 port (DVI-I)
1920×1200@60Hz		 -

A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.

LPC-1700 3
(Expansion/Clone)		 1 port
3840×2160@60Hz		 - 1 port
3840×2160@60Hz		 1 port (DVI-I)
1920×1080@60Hz		 1 port※
1920×1200

A maximum of 3 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.

  • *
    When the provided DVI-analog RGB adapter is used. Operation is not guaranteed when a commercially available splitter cable is used to split DVI-I into DVI-D and Analog RGB.
LPC-200A
Discontinued 		2
(Expansion/Clone)		 1 port (v1.2)
1920×1200		 - 1 port (v1.4)
1920×1080@60Hz		 - -

A maximum of 2 displays can be connected.
Because DisplayPort supports Dual Mode, it is possible to connect HDMI or DVI input displays using a passive type adapter or converter cable.

Custom Computer Solution-ePC
MR44000 1 - - - - 1 port

MR4310 2
(Expansion/Clone)		 - - 1 port
4096×2160		 1 port (DVI-I)
1920×1080		 -

MR4300 3
(Expansion/Clone)		 1 port
7680×4320@60Hz		 - 1 port
3840×2160@60Hz		 - 1 port
1920×1200@60Hz

MR4100 3
(Expansion/Clone)		 1 port
3840×2160		 - 1 port
3840×2160		 - 1 port
1920×1080

SR4100
SR4110
SR4120
 2
(Expansion/Clone)		 - - - 1 port (DVI-I)
1920×1200		 1 port*
1920×1080
  • *
    When the provided DVI-analog RGB adapter is used, 2 displays of DVI-D and analog RGB can be used.
SR4000 2
(Expansion/Clone)		 - - - 1 port (DVI-I)
1920×1200		 1 port*
1920×1200
SPF14MQ1700 Discontinued 3
(Expansion/Clone)		 - - 1 port(v1.4)
3840×2160@24Hz		 1 port (DVI-D)
1920×1200		 1 port
1920×1200

A maximum of 3 displays can be connected.

SPF14SQ1700 Discontinued 2
(Expansion/Clone)		 - - - 1 port (DVI-D)
1920×1200		 1 port*
1920×1080
  • *
    When the provided DVI-analog RGB adapter is used, 2 displays of DVI-D and analog RGB can be used.
SPF10SQ1700 Discontinued 2
(Expansion/Clone)		 - - - 1 port (DVI-D)
1920×1200		 1 port*
1920×1080
SPF6SQ1700 Discontinued 2
(Expansion/Clone)		 - - - 1 port (DVI-D)
1920×1200		 1 port*
1920×1080
